Description

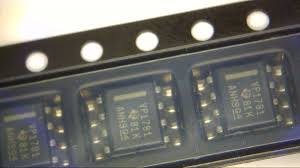

SN65HVD1781DR Texas Instruments RS485 Single Transmitter/Receiver 70V Fault-Protected RS-485 -40 to 125C 1Mbps 8-Pin SOIC T/R RoHS
Specifications
Manufacturer: Texas Instruments
Product Category: RS-485 Interface IC
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Series: SN65HVD1781
Function: Transceiver
Data Rate: 1 Mb/s
Number of Drivers: 1 Driver
Number of Receivers: 1 Receiver
Duplex: Half Duplex
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 3.15 V
Operating Supply Current: 6 mA
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Packaging: Cut Tape
Packaging: Reel
Input Voltage: – 7 V to + 12 V
Output Voltage: 2.75 V
Product: RS-485 Transceivers
Brand: Texas Instruments
Shutdown: No Shutdown
Operating Supply Voltage: 3.3 V, 5 V
Pd – Power Dissipation: 905 mW
Product Type: RS-485 Interface IC
Propagation Delay Time: 200 ns
Factory Pack Quantity: 2500
Subcategory: Interface ICs
Unit Weight: 0.002677 oz
Manufacturer: Texas Instruments
MFG Part #: SN65HVD1781DR
