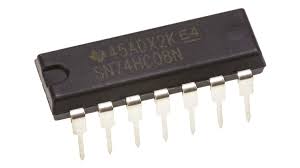

SN74HC08N Texas Instruments Logic Gates Quad 2-Input 4 Channel 14-PDIP RoHS
Specifications
Manufacturer: Texas Instruments
Product Category: Logic Gates
Product: Single-Function Gate
Logic Function: AND
Logic Family: HC
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: – 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 28 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: PDIP-14
Packaging: Tube
Function: Quad 2-Input.
Height: 4.57 mm
Input Type: CMOS
Length: 19.3 mm
Operating Temperature Range: – 40 C to + 85 C
Output Type: CMOS
Series: SN74HC08
Width: 6.35 mm
Brand: Texas Instruments
Logic Type: 2-Input AND
Number of Bits: 4 bit
Operating Supply Current: 20 uA
Operating Supply Voltage: 5 V
Product Type: Logic Gates
Factory Pack Quantity: 25
Subcategory: Logic ICs
Unit Weight: 0.032734 oz
Manufacturer: Texas Instruments
MFG Part #: SN74HC08N
