Description
SP3232EBCY-L Exar Dual Transmitter/Receiver RS-232 Interface IC TRUE +3V-+5.5V RS-232
Specifications
Manufacturer: Exar
Product Category: RS-232 Interface IC
RoHS: Details
Mounting Style: SMD/SMT

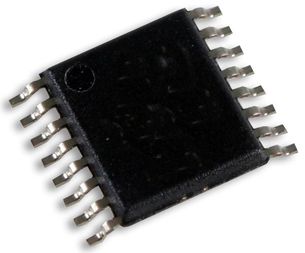

Package / Case: TSSOP-16
Series: SP3232EB
Function: Transceiver
Number of Drivers: 2 Driver
Number of Receivers: 2 Receiver
Packaging: Cut Tape
Packaging: Reel
Product: RS-232 Transceivers
Brand: Exar
Tradename: Sipex
Unit Weight: 0.006102 oz
The SP3232EB series is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook or laptop computers. The SP3232EB series has a high-effi ciency, charge-pump power supply that requires only 0.1F capacitors in 3.3V operation. This charge pump allows the SP3232EB series to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.5V. The SP3232EB are 2-driver/2-receiver devices. The ESD tolerance of the SP3232EB devices is over +/-15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. The SP3222EB device has a low-power shutdown mode where the devices’ driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1uA.
Manufacturer Part Number: SP3232EBCY-L
Manufacturer: Exar
