Description

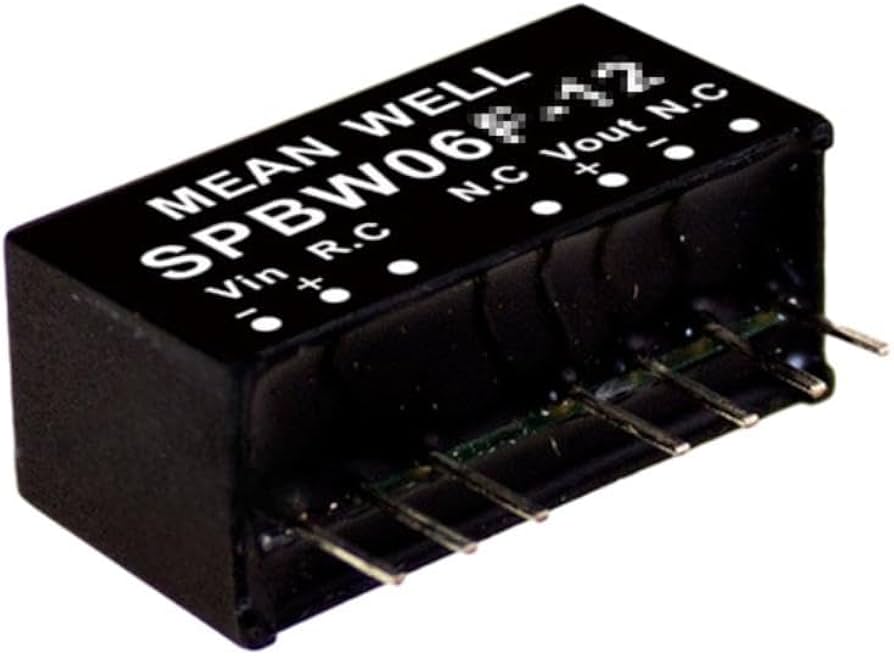

SPBW06G-12 Mean Well Module DC-DC 48VIN 1-OUT 12V 0.5A 6W 7-Pin SIP Module Tube RoHS
Specifications
Manufacturer: MEAN WELL
Product Category: Isolated DC/DC Converters
Number of Outputs: 1 Output
Output Power: 6 W
Input Voltage, Nominal: 48 V
Output Voltage-Channel 1: 12 V
Output Current-Channel 1: 500 mA
Isolation Voltage: 1.5 kV
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: SIP-8
Length: 21.8 mm
Width: 9.2 mm
Height: 11.1 mm
Industry: Industrial
Product: Isolated
Series: SPBW06 & DPBW06
Input Voltage: 48 V
Brand: MEAN WELL
Product Type: Isolated DC-DC Converters
Factory Pack Quantity: 14
Subcategory: DC-DC Converter
Unit Weight: 0.169315 oz
MEAN WELL SPBW06G-12 compact SIP-8 package DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+85C
Comply to EN55032 radiated Class A with external components
Single output
High efficiency
I/O isolation 1.5K Vdc
No minimum load required
Remote On/Off
Protections: short circuit (continuous) / over load
MEAN WELL 3 year warranty
Manufacturer:Electronic Components
Datasheet:spbw06dpbw06-spec.pdf
