Description

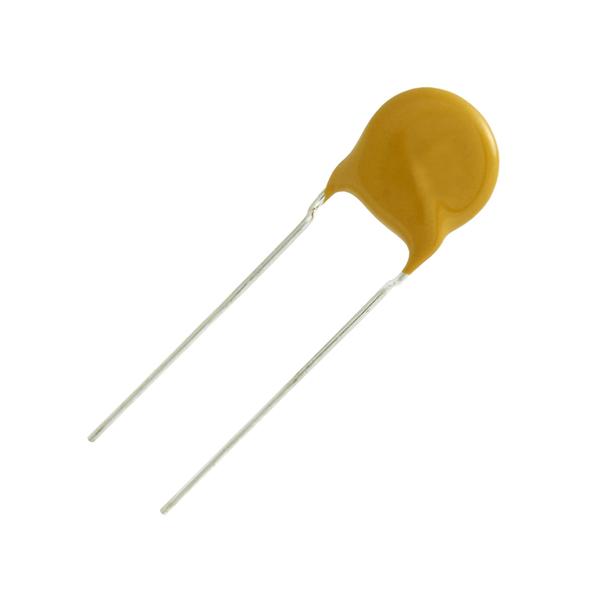

Vishay – SPRAGUE 30GAT22 DISK Capacitor 3000V 20% 220pF
Specifications
EU RoHS Not Compliant
Capacitance Value 220pF
Voltage 3000VDC
Tolerance 20%
Dielectric X7R
Type Ceramic Disc
Mounting Through Hole
Termination Style Radial
Size (mm) 8.382 X 4.445
Lead Diameter (mm) 0.81
Packaging Bulk
Product Depth (mm) 4.445(Max)
Product Diameter (mm) 8.382(Max)
Seated Plane Height (mm) 13.182(Max)
Lead Pitch (mm) 6.35
Part Specification:
- Type : Ceramic Disc
- Capacitance : 220pF
- Voltage : 3000VDC
- Temp Coeff (Dielectric) : X7R
- Tolerance (+ or -) : 20%
- Construction : Radial
- Lead Spacing (nom) : 6.35mm
- Package / Case : Not Required
- Packaging : Bulk
- Mounting Style : Through Hole
- Product Length (mm) : Not Required
- Product Depth (mm) : 4.445mm
- Product Height (mm) : Not Required
- Product Diameter (mm) : 8.382mm
- Failure Rate : Not Required
- Lead Diameter (nom) : 0.81mm
- Seated Plane Height : 13.182mm
Manufacturer Part Number: 30GAT22
Vishay / Sprague
