Description

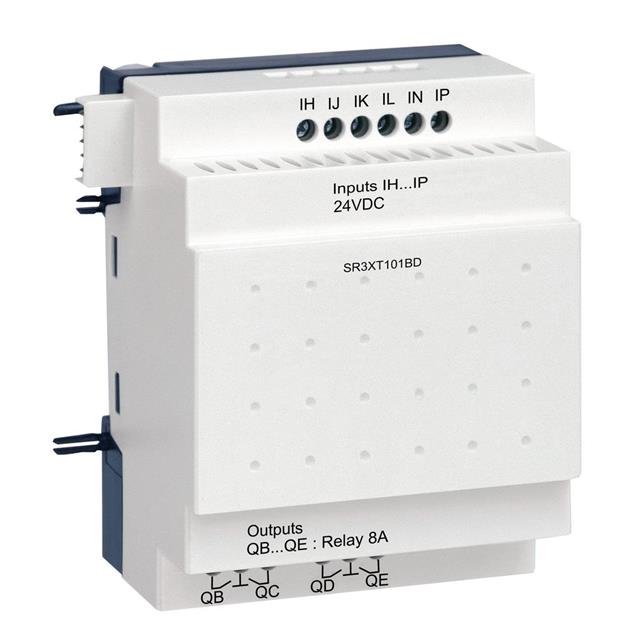

SR3XT101BD Schneider Electric Zelio Logic Input, Output (I/O) Module 24VDC 4 Relay 6 Digital DIN Rail Screw Terminal for Zelio Logic Series. This Zelio Logic SR3 smart discrete I/O relay expansion module operates on a 24V DC supply voltage. It features 10 contact inputs/outputs with screw terminals. It enables simple ladder programming, designed to be accessible to non-specialists.
Schneider TM5SPDG6D6F Power distribution module Cabling various voltage to power 6 I/O in 0 V DC & 6 I/O in 24 V DC Motion controller, Logic controller 24 V IP20IEC 61131-2 IP20 modular I/O-system Expansion modules “Slice” Common distribution
Specifications
Item Extension Module
Checks Program Memory On Each Power Up
Compatible Product Type Smart Relays
Compatible With Brand Schneider
Current Rating 4 mA
Discrete Input Current 4 mA
Features Simple Programming
Input Circuit Current – Maximum 4 mA
Input Circuit Voltage – Maximum 24V DC
Input Type Resistive
Maximum Altitude Transport 3048m
Mounting Style DIN Rail
No. And Type Of Outputs (4) Relay
Number And Type Of Inputs (6) Discrete
Number Of Inputs 6
Number Of Outputs 4
Output Circuit Current – Maximum 8A
Output Circuit Voltage – Maximum 30V DC/250V AC
Output Circuit Voltage – Minimum 5/24V AC/DC
Overall Depth 2.34″
Overall Height 3 1/2″
Overall Width 2 4/5″
Power Required 24V DC
Product Type Discrete Input/Output Module
Series SR3 Series, ZELIO LOGIC Series
Type Discrete Inputs/Outputs
Voltage 24V DC
Wire Connection Type Screw Clamp
Shipping Information
Height (cm) 7
Length (cm) 10.76
Width (cm) 3.55
HS Code 8537109060
Country Of Origin FR
Weight (kg) 0.171
SR3XT101JD
Manufacturer PN: SR3XT101BD
Manufacturer: Schneider
