Description

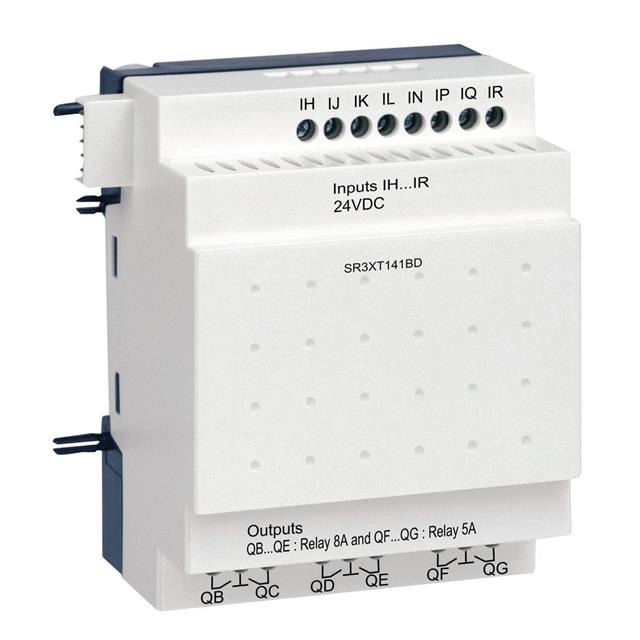

SR3XT141BD Schneider Electric Zelio Logic Input, Output (I/O) Module 24VDC 6 Digital 8 Digital DIN Rail Screw Terminal for Zelio Logic Series Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards. This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 14 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
Number of Ports 14
Mounting Type DIN Rail Mount
UNSPSC Code 39120000
Number of Outputs 6
Unit of Measure EA
Number of IO Ports 14
Number of Inputs 8
Series Zelio SR3 Series
Input Type Digital, Discrete
For Use With Programmable Relays
UPC Code 785901422518
Special Features Modular SR3 Expansion Module, Supply Input from Zelio Smart Relay
Supply Voltage 24 VDc
Output Type Digital, Discrete
Primary Type I/O
Dimensions 4.24 in L X 2.76 in D
Termination screw
Family Name Zelio Logic Family
Communication Port Type Screw
Manufacturer PN: SR3XT141BD
Manufacturer: Schneider
