Description

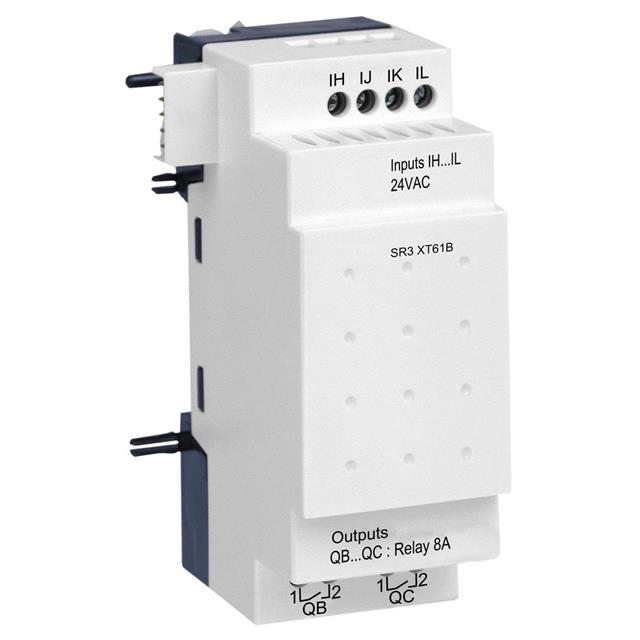

SR3XT61B Schneider Electric Zelio Logic Input, Output (I/O) Module 24VAC 2 Relay 4 Analog DIN Rail Screw Terminal for Zelio Logic Series. This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 24 volts alternating current, has 6 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Catalog Number: SR3XT61B
Model: SR3
Type: DISCRETE I/O EXTENSION MODULE
Operating Voltage: 24 VAC
Used On: SR3B SERIES SMART RELAY
Additional Information: APPROVAL UL, CSA, C-TICK, GOST, GL; NUMBER OF INPUTS 4; NUMBER OF OUTPUTS 2 RELAY; SIZE 35.5 MM W X 59.5 MM D X 107.6 MM H; ENCLOSURE TYPE IP20/IP40
CATALOG DESCRIPTION: DISCRETE I/O EXTENSION MODULE, ZELIO LOGIC, 6 I/O, 24 V AC
Category: Programmable Logic & Automation Expansion Modules
Full Technical Description: Discrete I/O Extension Module Type; SR3B Series Smart Relay Used on; 24 VAC Operating Voltage; Approval UL, CSA, C-TICK, GOST, GL; Number of Inputs 4; Number of Outputs 2 Relay; Size 35.5 mm W X 59.5 mm D X 107.6 mm H; Enclosure Type IP20/IP40; SR3 Model
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Description: Square D SR3XT61B Zelio Sr3 Expansion Module 6 I-O 24VAC
Manufacturer PN: SR3XT61B
Manufacturer: Schneider
