Description

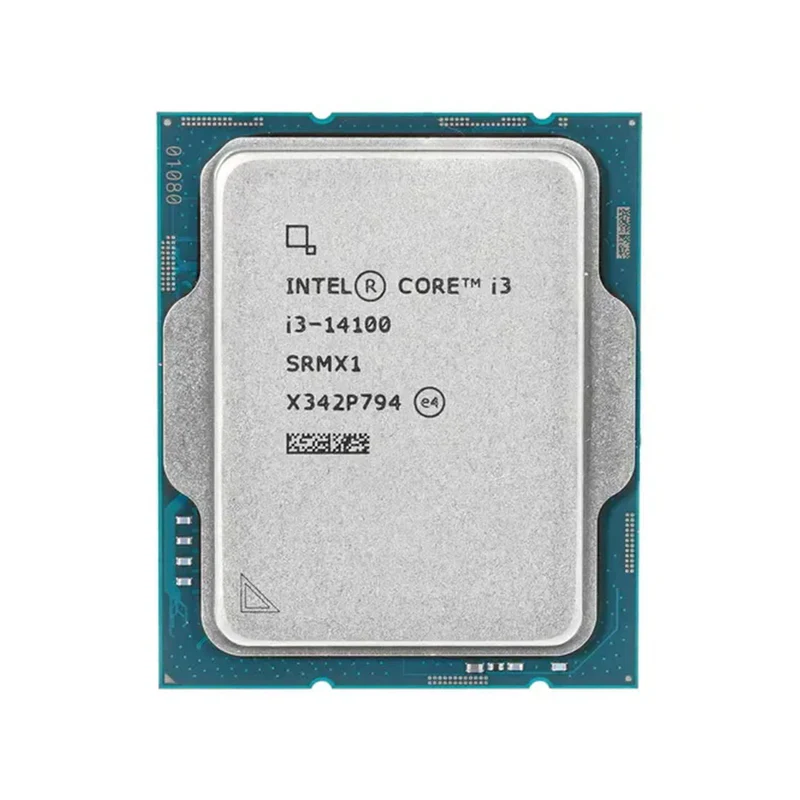

SRMX1 Intel Core i3-14100 Desktop Processor 4 cores (4 P-cores + 0 E-cores) 4.7 GHz
Intel Core i3-14100. Processor family: Intel® Core™ i3, Processor socket: LGA 1700, Processor manufacturer: Intel. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. On-board graphics card model: Intel UHD Graphics 730, On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, On-board graphics card dynamic frequency (max): 1500 MHz. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Processor package size: 45 x 37.5 mm
4 cores (4 P-cores + 0 E-cores) and 8 threads. Integrated Intel UHD Graphics 730 included.
Performance two core microarchitecture, prioritizing and distributing workloads to optimize performance
Up to 4.7 GHz unlocked. 12MB Cache
Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included.
Includes Intel Laminar RM1 Cooler
Product Line: 14th Generation Intel Core i3-14100 (Raptor Lake)
Turbo Clock Speed: Up to 4.7GHz on Performance-Cores
Base Clock Speed: 3.5GHz on Performance-Cores
CPU Socket: S1700
# of CPU Cores: 4 Performance-Cores
# of CPU Threads: 8 on Performance-Cores
Cache L2 Cache: 5MB || L3 Cache: 12MB
Memory Support: DDR4/DDR5 (Dual Channel)
Integrated Graphics: Intel UHD Graphics 730
Brand Intel
Processors Type Desktop
Series Core i3 14th Gen
Name Core i3-14100
Model BX8071514100
DetailsCPU Socket Type LGA 1700
Core Name Raptor Lake
# of Cores 4-Core (4P+0E)
# of Threads 8-Threads
Operating Frequency Performance-core Base Frequency: 3.5 GHz
Max Turbo Frequency Max Turbo Frequency: 4.7 GHz
P-core Max Turbo Frequency: 4.7 GHz
L2 Cache 5MB
L3 Cache 12MB
Manufacturing Tech Intel 7
Instruction Set 64-Bit
Hyper-Threading Support Yes
Memory Types DDR4 3200 / DDR5 4800
Memory Channel 2
Max Memory Size 192 GB
Max Memory Bandwidth 76.8 GB/s
Virtualization Technology Support Yes
Integrated Graphics Intel UHD Graphics 730
Graphics Max Dynamic Frequency 1.5 GHz
Scalability 1S Only
PCI Express Revision 5.0 / 4.0
PCI Express Configurations Up to 1×16+4, 2×8+4
Max Number of PCI Express Lanes 20
Thermal Design Power 60W
Max Turbo Power 110W
Cooling Device Intel Laminar RM1 included
Compatible Desktop Chipsets Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790
* BIOS update may be required when used with some old chipset motherboard
Operating System Supported Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2)
