Description

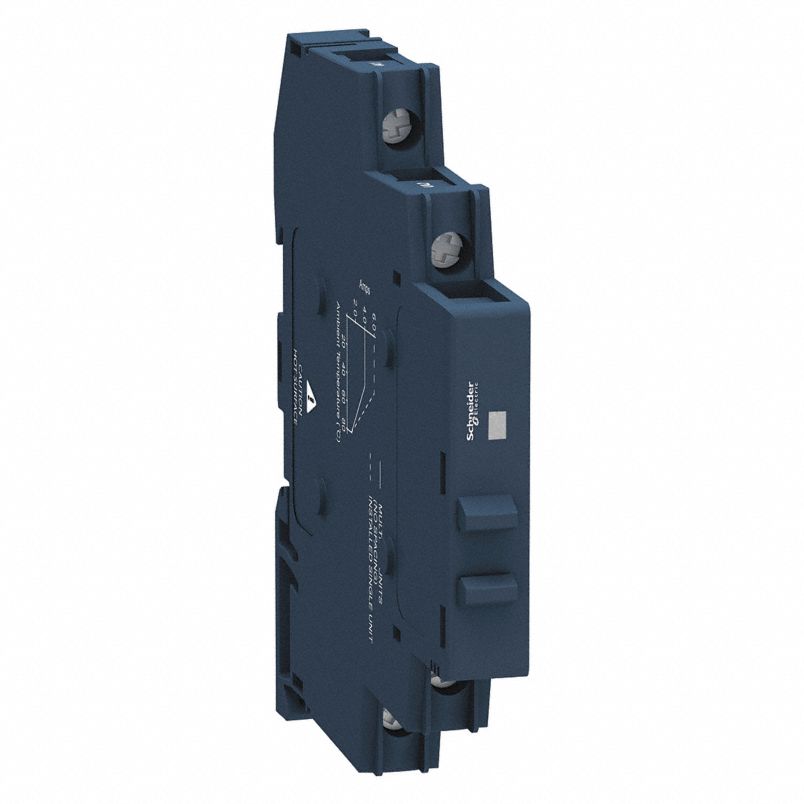

SSM1D26BD Schneider Electric Solid State Relay AC Switching MOSFET, 6 A, 32 VDC SPST-NO Screw DIN Rail, RoHS
Specifications
Manufacturer: Schneider Electric
Product Category: Solid State Relays – Industrial Mount
Product: Single Phase Relays
Load Current Rating: 6 A
Load Voltage Rating: 1 VDC to 60 VDC
Control Voltage Range: 4 VDC to 32 VDC
Series: SSM
Brand: Schneider Electric
Product Type: SSR – Solid State Relays
Subcategory: Relays
Tradename: Zelio
Unit Weight: 1.763698 oz
Item – Relay Solid State Relay Input or Control Voltage 4 to 32V DC Output or Controlled Voltage Range 2 to 60V DC Max. Output Amps w/Heat Sink 6 Heat Sink Integral Switch Type MOSFET Contact Form – Relay SPST-NO Relay Turns On At Zero Crossing Input Power Consumption (Burden) 0.4W
Mounting – Relay DIN Rail Finger Safe Yes Body Height – Relay 3.3 in Body Width – Relay 0.72 in Body Depth – Relay 3.45 in Overall Height – Relay 3.3 in Max. Output Amps Without Heat Sink 6.0 Integral Heat Sink Case Color Dark Gray Standards CE, CSA, RoHS, UL
Manufacturer:Electronic Components
Datasheet:Others/SSM1D26BD.pdf
