Description

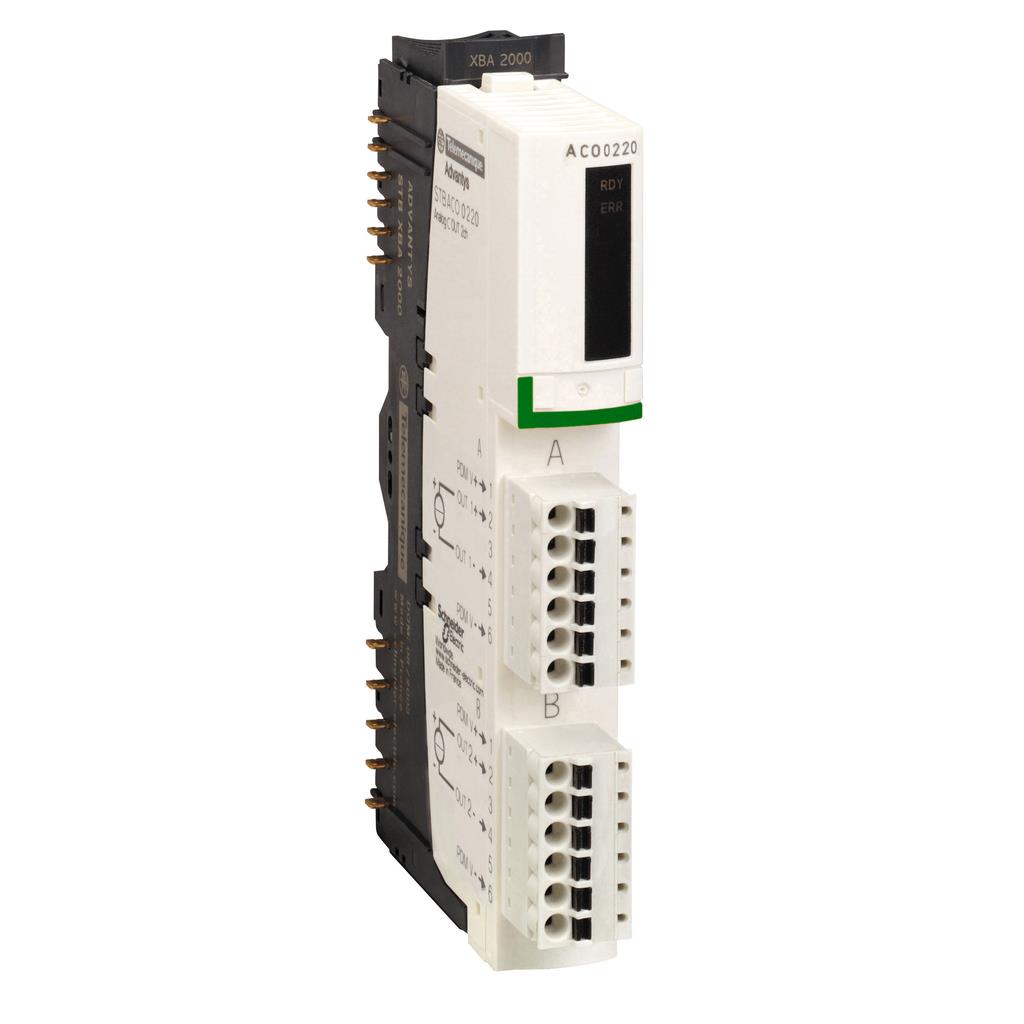

STBACO0220K Schneider Electric Modicon STB Input, Output (I/O) Module 24VDC 2 Analog DIN Rail Screw Terminal for Modicon STB Series
Manufacturer PN: STBACO0220K
Manufacturer: Schneider
Schneider Electric Modicon Analog Output Kit, Standard, Series: STB, 2 Outputs, 0 to 20/4 to 20 mA Signal, 8 ms Conversion Rate, +15 bit Resolution, +/-0.3 % Accuracy, 4 ms Step Response, 24 V DC, 210 mA, Screw/Spring Clamp Terminal, 0 to 60 deg C, 70 mm L x 128.3 mm W x 18.4 mm H Dimensions
Additional Description: SQD -STBACO0220K ANALOG C OUT 2CH 16 BIT KIT CONNS, BASE
Catalog Description: standard analog output kit, Modicon STB, 4 to 20mA, 2O, 15 bits with sign
STBACO0220K Application
For packaging, bottling, assembly, distribution, textile, printing, semiconductor machines, STBXBA1000 mounting base and STBPDT3100/3105 power distribution module
STBACO0220K Includes
(1) STBAVI1270 Module, (1) STBXBA2000 Base, (6) STBXTS1100 Terminal Screw Connectors and (6) STBXTS2100 Terminal Spring Clamp Connectors
STBACO0220K Item Features
Adaptable to network
Simple, open and flexible
Save time, money by simplifying maintenance, diagnostic task
Short circuit protection
Wide range of operating temperature from 0 deg C to 60 deg C
