Description

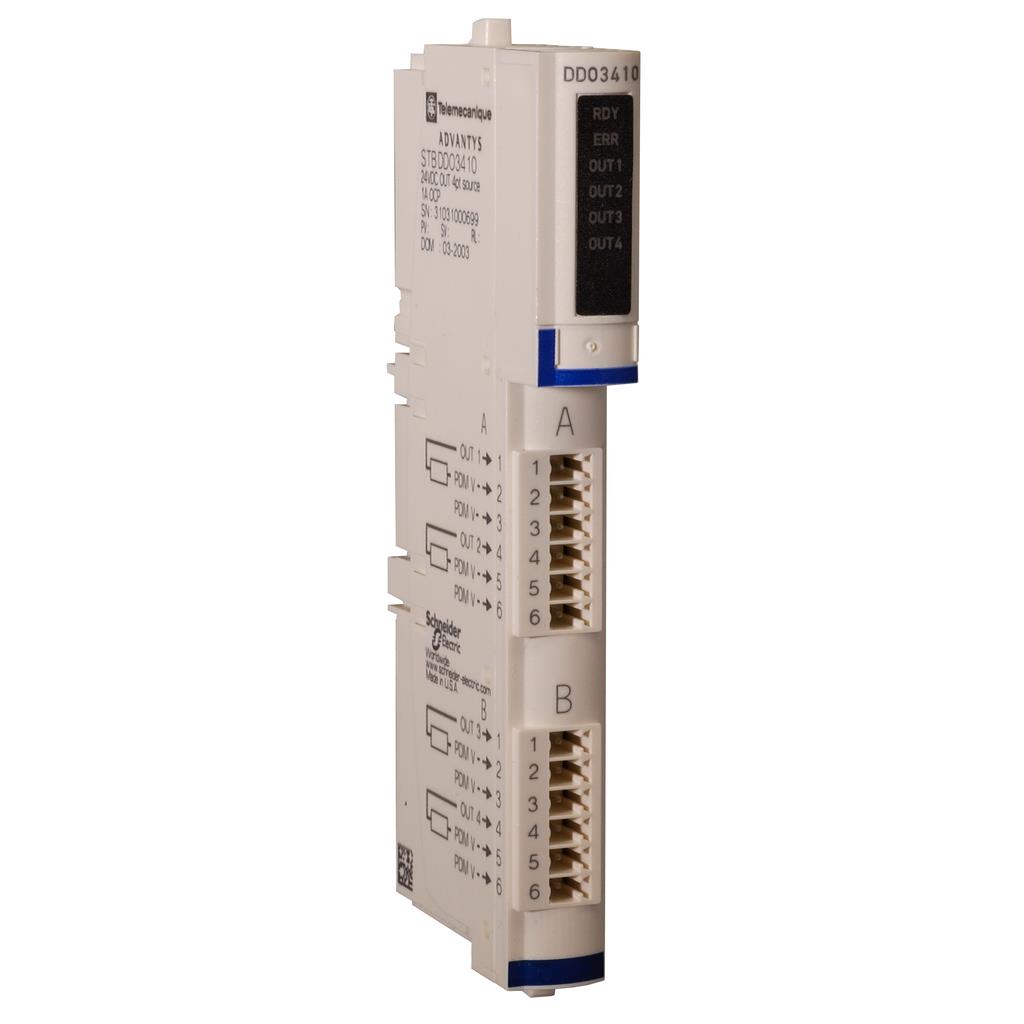

STBDDO3410K Schneider Electric Standard Digital Output Kit – Modicon STB – 24 V DC – 4 O, 24VDC 4 Digital DIN Rail Screw Terminal for Modicon STB. This output kit is part of the Modicon STB range, an offer of modular distributed I/O. This standard digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It includes a digital input module, an STB base, one spring clamp connector, and one screw type connector. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. The kit includes STBXBA1000 base, STBDDO3410 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.
Manufacturer PN: STBDDO3410K
Manufacturer: Schneider
| MAIN SPECIFICATIONS | |
|---|---|
| Analogue Input Number | 24 V DC |
| Discrete Output Type | solid state |
| Physical Interface | 19.2…30 V DC |
| Product Or Component Type | standard digital output kit |
| Range Of Product | Modicon STB distributed I/O solution |
| Discrete Output Logic | positive or negative |
| Discrete Output Voltage | 24 V |
| Discrete Output Voltage Type | DC |
| Range Name | Modicon STB |
| COMPLEMENTARY | |
| Discrete Output Number | 4 |
| Output Voltage | 19.2…30 V DC |
| Port Ethernet | 4 |
| [Ics] Rated Service Breaking Capacity | solid state |
| Absolute Maximum Voltage | 56 V 1.3 ms |
| Cold Swapping | yes |
| Current Consumption | 70 mA at 5 V DC for logic bus |
| Depth | 70 mm |
| Discrete Output Current | 500 mA |
| Fallback Status | state 0 basic NIMs user configurable standard NIMs |
| Height | 13.9 mm |
| Hot Swapping Fallback | yes for standard NIMs |
| Insulation Between Channels And Logic Bus | 1500 V for 1 minute |
| Kit Composition | STBDDO3410 module STBXBA1000 base STBXTS1100, 6-terminal screw type connector STBXTS2100, 6-terminal spring clamp connector |
| Marking | CE |
| Maximum Leakage Current | 0.4 mA at state 0 30 V |
| Maximum Load Capacitance | 50 µF |
| Maximum Load Inductance | 500 mH at 4 Hz |
| Minimum Load | 0.5 mA |
| Net Weight | 0.11 kg |
| Product Compatibility | I/O base STBXBA1000 power distribution module STBPDT3100/3105 |
| Protection Type | power protection integrated fuse on PDM time lag 10 A reverse polarity protection short-circuit protection thermal overload protection |
| Reset | manual reset COM fault |
| Response Time | 560 µs off-to-on 870 µs on-to-off |
| Status LED | 1 LED (green)module status (RDY) 1 LED (red)module error (ERR) 1 LED per channel (green)channel status (OUT1 to OUT4) |
| Supply | power distribution module |
| Surge Current | 5 A 0.5 ms |
| Width | 128.3 mm |
| ENVIRONMENT | |
| Ambient Air Temperature For Operation | 0-60 °C (without derating) 32…140 °F without derating |
| Ambient Air Temperature For Storage | -40…185 °F without derating -40-85 °C without derating |
| IP Degree Of Protection | IP20 conforming to EN 61131-2 class 1 |
| Operating Altitude | <= 2000 m |
| Overvoltage Category | II |
| Pollution Degree | 2 conforming to IEC 60664-1 |
| Product Certifications | CSA FM Class 1 Division 2 UL |
| Relative Humidity | 95-95 % at 60-60 °C without condensation |
| Shock Resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Standards | EN/IEC 61131-2 |
| Vibration Resistance | +/-0.35 mm at 10-58 Hz 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail |
| OTHER | |
| Poles Description | standard digital output kit |
| [Us] Rated Supply Voltage | 24 V DC |
