Description

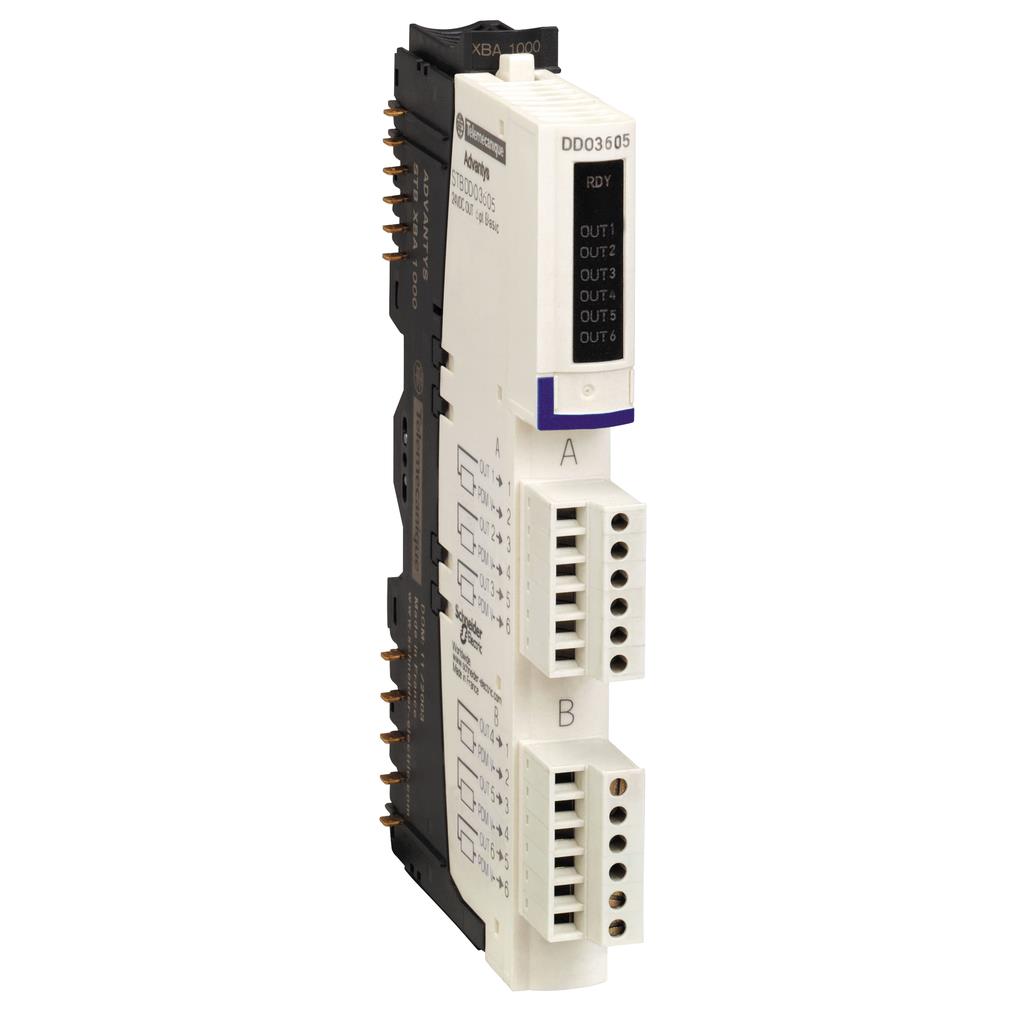

STBDDO3605K Schneider Electric digital output kit, Modicon STB, basic, 24V DC, 6 Digital DIN Rail Screw Terminal for Modicon STB. This output kit is part of the Modicon STB range, an offer of modular distributed I/O. This basic digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). The kit has 6 digital outputs. Setting can be done via Advantys STB configuration software. It weighs 0.11kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. The kit includes STBXBA1000 base, STBDDO3605 module, STBXTS2100, 6-terminal spring clamp connector, and STBXTS1100 6-terminal screw type connector. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network.
Manufacturer PN: STBDDO3605K
Manufacturer: Schneider
Schneider Electric Modicon Digital Output Kit, Basic Solid State, Series: STB, 6 Inputs, 6 Outputs, 550/900 us Step Response, 24 V DC, 90 mA, Screw/Spring Clamp Terminal, 0 to 60 deg C, 70 mm L x 128.3 mm W x 13.9 mm H Dimensions
Additional Description: SQD -STBDDO3605K (N) 24VDC OUT 6PT BASIC KIT CONNS,BASE CONNS,BASE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: digital output kit, Modicon STB, basic, 24V DC, 6 O
STBDDO3605K Application
Fot STBXBA1000 mounting base, STBPDT3100/3105 power distribution module, packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications
STBDDO3605K Includes
(1) STBDDO3605 Module, (1) STBXBA1000 Base, (6) STBXTS1100 Terminal Screw Connectors and (6) STBXTS2100 Terminal Spring Clamp Connectors
STBDDO3605K Item Features
Easy to connect
Power supply 24 V DC
