Description

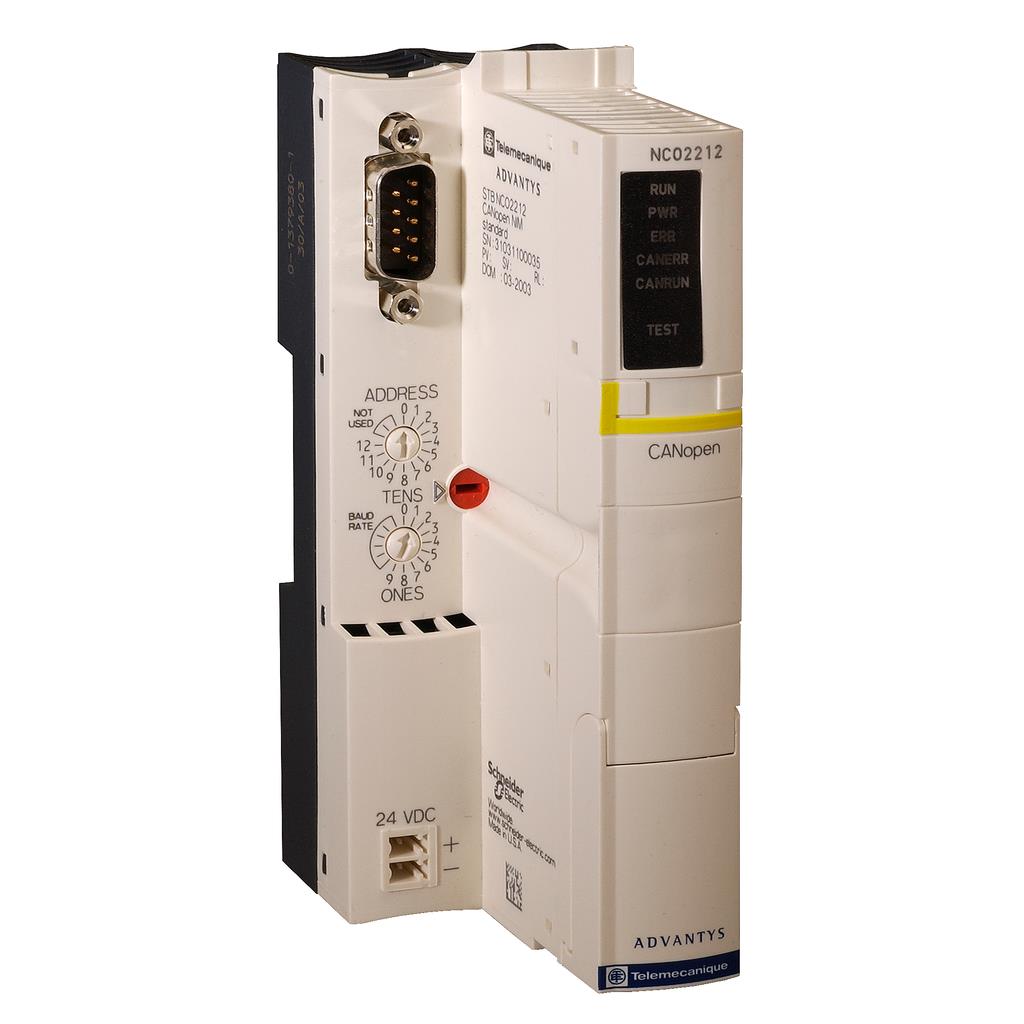

STBNCO2212 Schneider Electric network interface module, Modicon STB, standard, CANopen bus, 1Mbps, DIN Rail Screw Terminal for Modicon STB. This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments and 127 slaves. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and output current of 1.2A. Communication services are service data object (SDO), network management (NMT) etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.135kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Manufacturer PN: STBNCO2212
Manufacturer: Schneider
Range of Product Modicon STB distributed I/O solution
Product or Component Type Standard Network Interface Module
Integrated connection type CANopen bus CIA DS-301 9-way male SUB-D connector double shielded twisted pair bus)
CANopen bus CIA DS-301 HE-13 RS232 port)
CANopen bus CIA DS-301 8-way female RS232 port)
Number of segments 1 primary, maximum 6 extensions
Number of server device(s) 127
Structure type CAN field bus
Number of addressable I/O module 0…32 per island
Input current 430 mA supply circuit
Nominal output current 0.575 A 140…158 °F (60…70 °C)
1.2 A
Output voltage 5.25 V DC +/- 0.21 %)logic bus
Electromagnetic compatibility Immunity to electromagnetic interference IEC 61131-2
Transmission Rate 1 Mbit/s
Datasheet: STBNCO2212
