Description

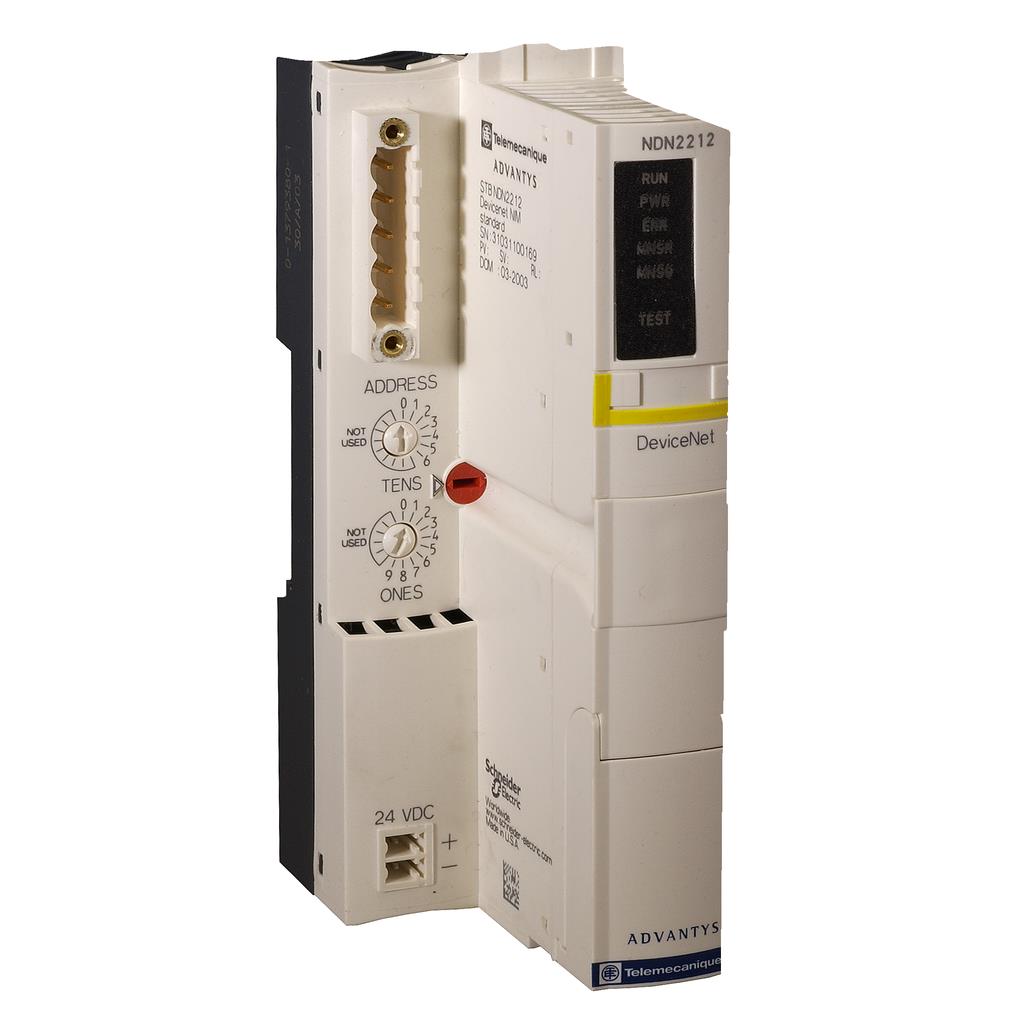

STBNDN2212 Schneider Electric Standard Network Interface Module, 24 V DC, 700 A, 125 to 500 kbps Communication, DIN Rail Screw Terminal for Modicon STB
Manufacturer PN: STBNDN2212
Manufacturer: Schneider
UPC: 78590127745
Catalog Number: STBNDN2212
Brand Name: Modicon
Model: STB
Communication Medium: Device Net
Transmission Rate: 125 to 500 Kbit/Second
Voltage Rating: 24 Volt DC
Approval: UL, CSA, CE
Additional Information: RoHS Compliant; Overall Dimension 1.57 Inch Width x 2.76 Inch Depth x 5.05 Inch Height; Enclosure Rating IP20; Input Current 700 Milliamp; Output Voltage 5.25 Volt DC
CATALOG DESCRIPTION: STANDARD NETWORK INTERFACE MODULE STB – DEVICENET – 125..500 KBIT/S
Category: Programmable Logic & Automation Accessories
Full Technical Description: UL, CSA, CE Approval; 24 Volt DC Voltage Rating; 125 to 500 Kbit/Second Transmission Rate; Device Net Communication Medium; Modicon Brand; RoHS Compliant; Overall Dimension 1.57 Inch Width X 2.76 Inch Depth X 5.05 Inch Height; Enclosure Rating IP20; Input Current 700 Milliamp; Output Voltage 5.25 Volt DC
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Description: Square D STBNDN2212 Devicenet Nim Standard
Datasheet: Schneider Electric Modicon STBNDN2212
