Description

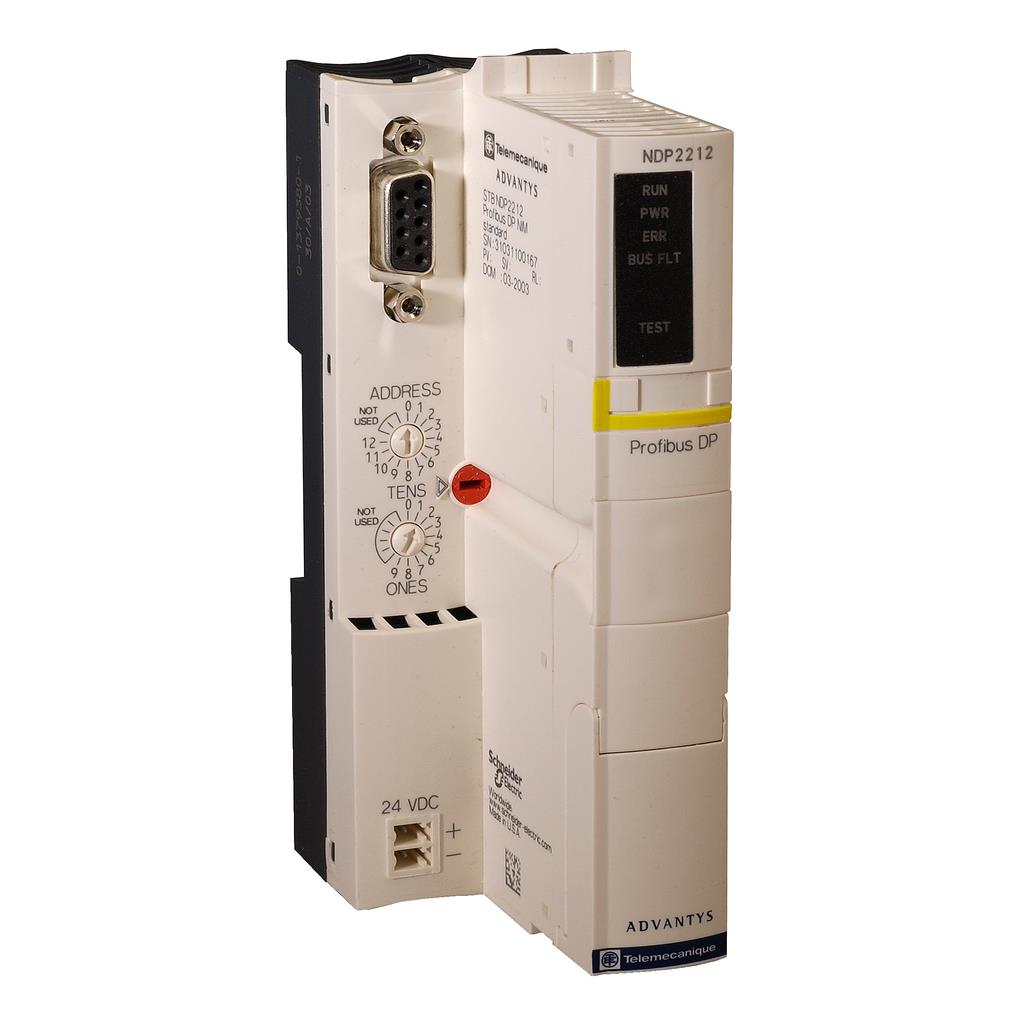

STBNDP2212 Schneider Electric standard Network Interface Module STB – Profibus DP – 9.6 kbit/s, 24VDC DIN Rail Screw Terminal for Modicon STB. This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 125 slaves with 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are diagnostics, read/write DP slave I/O data etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, ATEX, UL, C-Tick and CSA.
Manufacturer PN: STBNDP2212
Manufacturer: Schneider
UPC: 78590127738
Catalog Number: STBNDP2212
Communication Medium: FIELDBUS
Transmission Rate: 9.6 KBIT/SEC TO 12 MBIT/SEC
Voltage Rating: 24 VDC
Approval: UL, CSA, CE
Additional Information: ENCLOSURE RATING IP20; INPUT CURRENT 430 MILLIAMPERE; OUTPUT VOLTAGE 5.25 VDC; SIZE 40 MM W X 70 MM D X 128.3 MM H
CATALOG DESCRIPTION: STANDARD NETWORK INTERFACE MODULE STB – PROFIBUS DP – 9.6 KBIT/S
Category: Programmable Logic & Automation Accessories
Full Technical Description: UL, CSA, CE Approval; 24 VDC Voltage Rating; 9.6 Kbit/Sec to 12 Mbit/Sec Transmission Rate; Fieldbus Communication Medium; Enclosure Rating IP20; Input Current 430 Milliampere; Output Voltage 5.25 VDC; Size 40 mm W X 70 mm D X 128.3 mm H
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Description: Square D STBNDP2212 PROFIBUS DP Nim Standard
