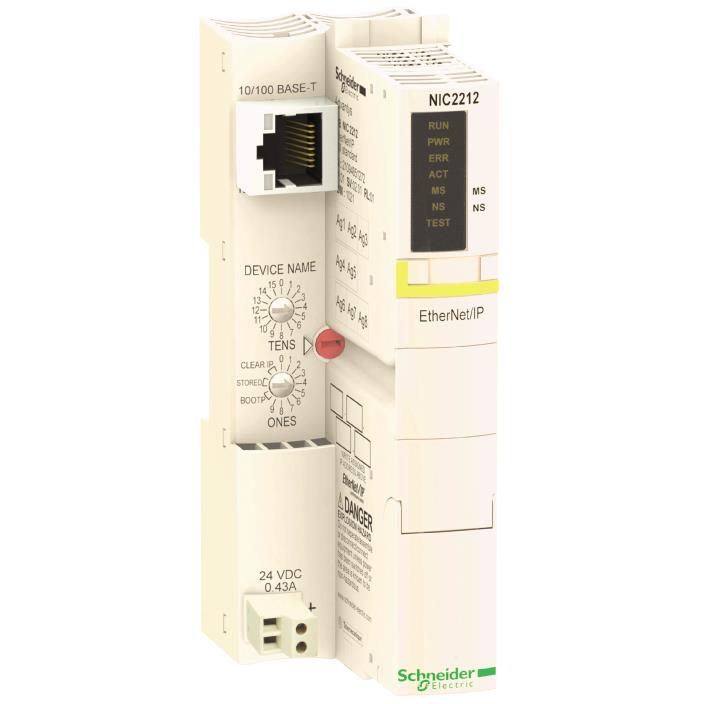

STBNIC2212 Schneider Electric network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s, 24VDC DIN Rail Screw Terminal for Modicon STB. This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Manufacturer PN: STBNIC2212
Manufacturer: Schneider
Catalog Number: STBNIC2212
Communication Medium: Ethernet/IP
Transmission Rate: 10 to 100 Mbps
Backplane Current Load: 430 Milliampere
Voltage Rating: 24 VDC
Application: Distributed I/O Solution
Approval: UL, CSA, CE, C-Tick, FM, ODVA
Additional Information: RoHS Compliant; Overall Dimension 128.3 MM W x 70 MM D x 40 MM H; Output Voltage Rating 5.25 VDC; Output Current Rating 1.2 Ampere; Enclosure Type IP20; Applicable Standard IEC 61131-2
CATALOG DESCRIPTION: STANDARD NETWORK INTERFACE MODULE STB – ETHERNET/IP – 10…100 MBIT/S
Category: Programmable Logic & Automation Accessories
Full Technical Description: UL, CSA, CE, C-TICK, FM, Odva Approval; Distributed I/O Solution Application; 24 VDC Voltage Rating; 430 Milliampere Backplane Current Load; 10 to 100 Mbps Transmission Rate; Ethernet/Ip Communication Medium; MODICON[R] Brand; RoHS Compliant; Overall Dimension 128.3 mm W X 70 mm D X 40 mm H; Output Voltage Rating 5.25 VDC; Output Current Rating 1.2 Ampere; Enclosure Type IP20; Applicable Standard IEC 61131-2
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Description: Square D STBNIC2212 Ethernet/Ip Nim Standard
Integrated connection type
Ethernet/IP IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet network)
Ethernet/IP IEEE 802.3 HE-13 RS232 port)
Ethernet/IP IEEE 802.3 8-way female RS232 port)
Number of segments
1 primary, maximum 6 extensions
Number of devices per segment
0…256
Number of addressable I/O module
0…32 per island
Input current
430 mA supply circuit
Nominal output current
0.575 A 140…158 °F (60…70 °C)
1.2 A
Output voltage
5.25 V DC +/- 0.21 %)logic bus
Exchange mode
Half or full duplex
Transmission Rate
10/100 Mbit/s
Communication Service
Embedded web (configuration,diagnostics and access to variable)
BootP/DHCP protocol
SNMP agent
