Description

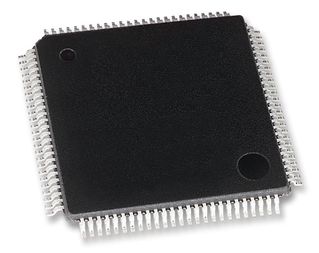

STM32F303VCT6 STMicroelectronics ARM Microcontrollers – MCU 32-Bit ARM Cortex M4 72MHz 256kB MCU FPU 2.5V/3.3V 100-Pin LQFP RoHS
The STM32F303xB/STM32F303xC family is based on the high-performance ARM Cortex -M4 32-bit RISC core with FPU operating at a frequency of up to 72 MHz, and embedding a floating point unit (FPU), a memory protection unit (MPU) and an embedded trace macrocell (ETM). The family incorporates high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 40 Kbytes of SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses.The devices offer up to four fast 12-bit ADCs (5 Msps), seven comparators, four operational amplifiers, up to two DAC channels, a low-power RTC, up to five general-purpose 16-bit timers, one general-purpose 32-bit timer, and two timers dedicated to motor control. They also feature standard and advanced communication interfaces: up to two ICs, up to three SPIs (two SPIs are with multiplexed full-duplex ISs), three USARTs, up to two UARTs, CAN and USB. To achieve audio class accuracy, the IS peripherals can be clocked via an external PLL.The STM32F303xB/STM32F303xC family operates in the -40 to +85 C and -40 to +105 C temperature ranges from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.The STM32F303xB/STM32F303xC family offers devices in three packages ranging from 48 pins to 100 pins.The set of included peripherals changes with the device chosen.
Specifications
Manufacturer:STMicroelectronics
Product Category:ARM Microcontrollers – MCU
Series:STM32F303VC
Mounting Style:SMD/SMT
Package / Case:LQFP-100
Core:ARM Cortex M4
Program Memory Size:256 kB
Data Bus Width:32 bit
Maximum Clock Frequency:72 MHz
Data RAM Size:40 kB
Operating Supply Voltage:2 V to 3.6 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Packaging:Tray
Program Memory Type:Flash
Brand:STMicroelectronics
Data RAM Type:SRAM
Moisture Sensitive:Yes
Processor Series:ARM Cortex M
Product Type:ARM Microcontrollers – MCU
Factory Pack Quantity:540
Subcategory:Microcontrollers – MCU
Tradename:STM32
Unit Weight:0.046530 oz
Manufacturer:STMicroelectronics
Datasheet:stm32f303cc.pdf
