Description

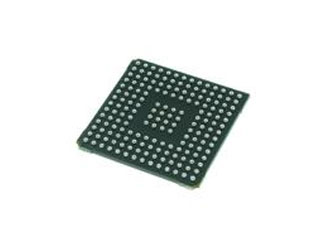

STM32F427IIH7 STMicroelectronics MCU Hi-performance STM32F Series 2 MB Flash 256 kB SRAM 180 MHz 32-Bit Microcontroller – UFBGA-176
Specifications
Manufacturer:STMicroelectronics
Product Category:ARM Microcontrollers – MCU
RoHS
Series:STM32F427II
Mounting Style:SMD/SMT
Package / Case:BGA-176
Core:ARM Cortex M4
Program Memory Size:2048 kB
Data Bus Width:32 bit
ADC Resolution:12 bit
Maximum Clock Frequency:180 MHz
Number of I/Os:140 I/O
Data RAM Size:260 kB
Operating Supply Voltage:1.7 V to 3.6 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 105 C
Product:MCU+FPU
Program Memory Type:Flash
Brand:STMicroelectronics
Data RAM Type:SRAM
Interface Type:CAN, I2C, SAI, SPI, UART/USART, USB
Analog Supply Voltage:1.7 V to 3.6 V
DAC Resolution:12 bit
Moisture Sensitive:Yes
Number of ADC Channels:24 Channel
Number of Timers/Counters:14 Timer
Processor Series:STM32F427
Product Type:ARM Microcontrollers – MCU
Factory Pack Quantity:1008
Subcategory:Microcontrollers – MCU
Supply Voltage – Max:3.6 V
Supply Voltage – Min:1.7 V
Tradename:STM32
Watchdog Timers:Watchdog Timer
Unit Weight:0.091712 oz
Manufacturer:STMicroelectronics
Datasheet:STMicro/STM32F.pdf
