Description

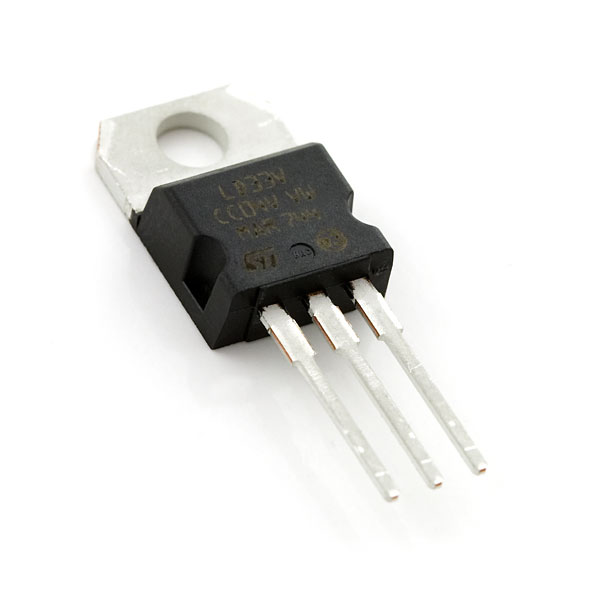

ST-MICRO Linear Voltage Regulator IC Positive Fixed Output 3.3V 800mA TO-220AB
– ST MICRO LD1117V33 Reg LDO Lin Fix Pos 3.3V 1.3A 3-Pin (3+Tab) TO-220
This is the basic LD1117V33 voltage regulator, a low drop positive regulator with a 3.3V fixed output voltage. This fixed regulator provides a great amount of stability and protection for your project and with its on ship trimming this regulator is able to reach an output voltage tolerance within ±1%. Each one of these voltage regulators can output a max current of 800mA.
Features:
- Output Voltage: 3.3V
- Output Current: 800mA
- Dropout Voltage: 1V
- Internal Current and Thermal Limit
Part Specification:
- Voltage Regulator Type : Linear
- Topology : Linear
- Regulator Output Type : Fixed
- Polarity Type : Positive
- Number of Outputs : Single
- Input Voltage (Max) : 15V
- Output Voltage : 3.3V
- Package Type : TO-220
- Packaging : Tube
- Output Current : 1.3A
- Power Dissipation : 12W
- Load Regulation : 10mV
- Line Regulation : 6mV
- Output Voltage Accuracy : 1%
- Operating Temp Range : 0C to 150C
- Operating Temperature Classification : Commercial
- Pin Count : 3 +Tab
- Mounting : Through Hole
Manufacturer:STMicroelectronics
Datasheet:LD1117V33.pdf
