Description

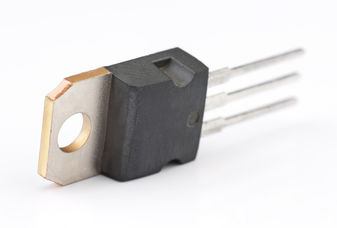

STPS20L60CT STMicroelectronics Schottky Rectifier 2X10A, 60V, Repetitive Reverse Voltage Vrrm Max:60V, Forward Current If(AV):10A, Diode Configuration:Dual Common Cathode, Diode Case Style:TO-220AB, No. of Pins:3Pins, Forward Voltage VF Max:560mV, RoHS
Specifications
Manufacturer: STMicroelectronics
Product Category: Schottky Diodes & Rectifiers
Product: Schottky Rectifiers
Mounting Style: Through Hole
Package / Case: TO-220-3
If – Forward Current: 20 A
Vrrm – Repetitive Reverse Voltage: 60 V
Vf – Forward Voltage: 0.74 V
Ifsm – Forward Surge Current: 220 A
Configuration: Dual Common Cathode
Technology: Si
Ir – Reverse Current: 350 uA
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
Series: STPS20L60C
Qualification: AEC-Q100
Height: 9.15 mm (Max)
Length: 10.4 mm (Max)
Operating Temperature Range: + 150 C
Termination Style: Through Hole
Type: Schottky Rectifier
Width: 4.6 mm (Max)
Brand: STMicroelectronics
Product Type: Schottky Diodes & Rectifiers
Factory Pack Quantity: 1000
Subcategory: Diodes & Rectifiers
Unit Weight: 0.211644 oz
The STPS20L60CT is a Dual center tap Schottky rectifiers suited for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-220AB, I2PAK and D2PAK, this device is intended for use in high frequency inverters.
Manufacturer:STMicroelectronics
Datasheet:STMicro/SGSTS49426-1.pdf
