Description

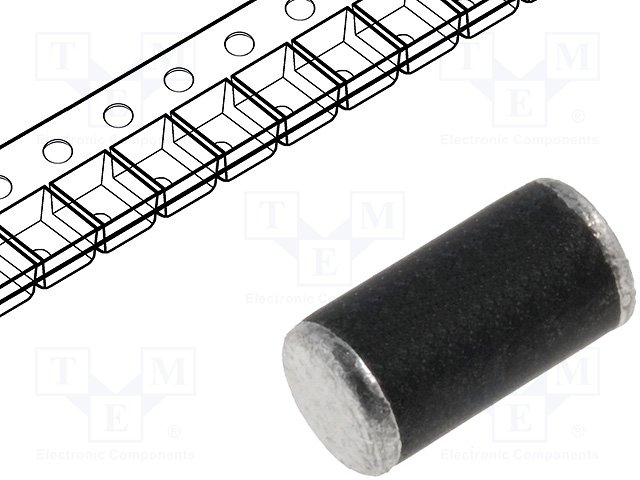

DIOTEC SEMICONDUCTOR SUF4007 RECTIFIER ULTRAFAST Switching Diode, 100V 1A, 2-Pin DO-213AB SMT
Specifications
Maximum Continuous Forward Current 1A
Diode Configuration Single
Rectifier Type Switching
Number of Elements per Chip 1
Peak Reverse Repetitive Voltage 100V
Mounting Type Surface Mount
Package Type DO-213AB
Diode Type Silicon Junction
Peak Forward Voltage 1.7V
Pin Count 2
Length 5.1mm
Width 2.6mm
Height 2.6mm
Peak Reverse Current 0.01mA
Dimensions 2.6 x 5.1 x 2.6mm
Minimum Operating Temperature -50 °C
Maximum Operating Temperature +175 °C
Peak Non-Repetitive Forward Surge Current 0.033kA
Manufacturer:Diotec
Datasheet:Diotec/MELF.pdf
