Description
These JWPF Contacts and Cable Assemblies are used with the respective JWPF Receptacle and Tab Housings:

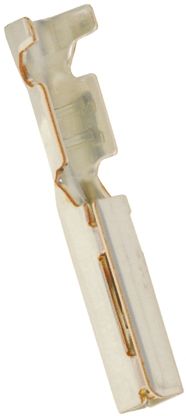

JWPF Receptacle Contact 820-1324 used in JWPF Receptacle Housing 820-1289 typical.
JWPF Tab Contact 820-1327 used in JWPF Tab Housing 820-1282 typical.
For a suitable Strip Feed Crimp Hand tool see stock number 602-8717 or for discrete contacts 688-0852 .
JWPF Cable Assemblies are pre-wired Contacts:
820-1286 is 150 mm long with Receptacle Contacts fitted.
820-1295 is 300 mm long with Receptacle Contacts fitted.
820-1298 is 150 mm long with Tab Contacts fitted.
820-1292 is 300 mm long with Tab Contacts fitted.
For a suitable Extraction Tool see stock number 688-0843 .
2.0mm JST Waterproof Wire-to-Wire Connectors
Additional Data
Wire range 0.13 to 0.33mm2 AWG#26 to #22
Wire sheath diameter 1.4 to 1.7 (mm)
Material, surface treatment Tab contact: Phosphor bronze, tin-plating
Receptacle contact: Copper alloy, tin-plating
Housing: PBT UL94V-0, Natural (white)
Rated current Max 3A AC/DC (AWG #22)
Rated voltage 100V AC/DC
Operating temperature range -55C to +85C
(Including temperature-rise value in applying current)
Contact resistance Initial/10mO or below
After environmental testing/15mO or below
Insulation resistance 1000MO or above
Withstand voltage AC1000V 1 minute
Waterproofing performance JIS C 0920 protection class 7 (immersion-proof) or higher
Specifications
Gender Female
Series JWPF
Termination Method Crimp
Contact Plating Tin
Contact Material Copper Alloy
Maximum Contact Resistance 10mO
Minimum Operating Temperature -40C
Maximum Operating Temperature +85C
Manufacturer:JST
Datasheet:eJWPF.pdf
