Description

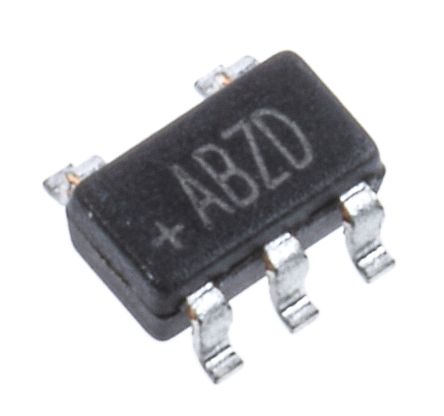

TC7SH17F,LJ(CT Toshiba Schmitt Buffer, CMOS, 2 to 5.5 V, 5-Pin SSOP
Technical Attributes
Number of Elements per Chip1
Maximum Propagation Delay Time @ Maximum CL10.6@5V|16.3@3.3V ns
Number of Channels per Chip1
MountingSurface Mount
Supplier PackageSSOP
Pin Count5
Typical Operating Supply Voltage3.3|5 V
Screening LevelIndustrial
Number of Inputs per Chip1
PolarityNon-Inverting
Operating Temperature-40 to 85C
Logic FunctionBuffer
Maximum Low Level Output Current8 mA
Propagation Delay Test Condition50 pF
Number of Outputs per Chip1
Product Dimensions2 x 1.25 x 0.9
Maximum Quiescent Current2 uA
Maximum High Level Output Current-8 mA
Input Signal TypeSingle-Ended
Bus HoldNo
Fabrication TechnologyCMOS
Tolerant I/Os5.5 V
Minimum Operating Supply Voltage2 V
Maximum Operating Supply Voltage5.5 V
Max Processing Temp260
Manufacturer:Toshiba
Datasheet:Toshiba/TC7SH17FU.pdf
