Description

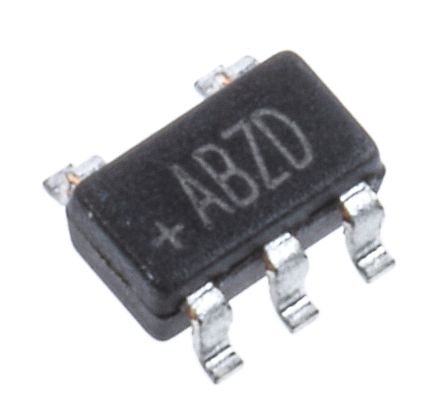

TC7SH17FU,LJ(CT Toshiba Schmitt Buffer, CMOS, 2 to 5.5 V, 5-Pin SSOP
Technical Attributes
Number of Elements per Chip 1
Maximum Propagation Delay Time @ Maximum CL 10.6@5V|16.3@3.3V ns
Number of Channels per Chip 1
Mounting Surface Mount
Supplier Package SSOP
Pin Count 5
Typical Operating Supply Voltage 3.3|5 V
Screening Level Industrial
Number of Inputs per Chip 1
Polarity Non-Inverting
Operating Temperature -40 to 85C
Logic Function Buffer
Maximum Low Level Output Current 8 mA
Propagation Delay Test Condition 50 pF
Number of Outputs per Chip 1
Product Dimensions 2 x 1.25 x 0.9
Maximum Quiescent Current 2 uA
Maximum High Level Output Current -8 mA
Input Signal Type Single-Ended
Bus Hold No
Fabrication Technology CMOS
Tolerant I/Os 5.5 V
Minimum Operating Supply Voltage 2 V
Maximum Operating Supply Voltage 5.5 V
Max Processing Temp 260
Manufacturer:Toshiba
Datasheet:Toshiba/TC7SH17FU.pdf
