Description

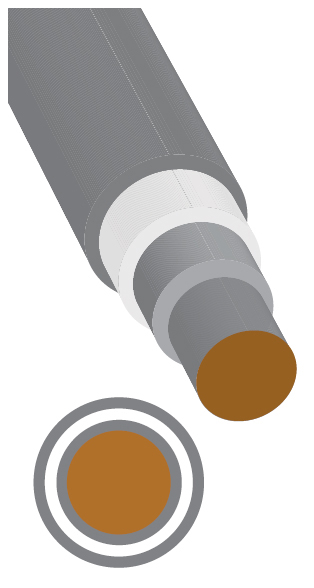

TCA3 20 AWG Rubadue Wire Insulated Wires 20 AWG STRD ETFE 1500V 155C UL1446 RoHS RoHS
Size Range:
UL: 18 AWG – 40 AWG
VDE: 14 AWG – 40 AWG
Not all sizes listed in chart
Conductor:
Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)
Bare Copper and other conductors available
Insulation:
Modified ETFE
Rating:
Temperature:155C
Voltage:
UL: 1500V for electronic equipment
UL: 707V for medical equipment
VDE: 1000V
Applications:
Various SMPS products
Electronic/Medical/Dental
Compliances:
UL OBJT2 File No. E206198
UL / IEC 60950-1(Ed.2), Annex U
IEC 61558-2-16, 60601-1 (Ed.3) ,61010-1(Ed.3)
VDE License Nr. 136743: Class F
System approvals: UL 1446
RXT-2 Class F
TCA Class F
Other systems available upon request
RoHS Compliant
Tensile Strength: 6500 psi
Breakdown: Approx. 7000V
TCA3 products come standard in Gray
Manufacturer: Rubadue Wire
MFG Part #: TCA3-20-AWG
