TDK C2012X7S0G226MT CAPACITORS 22UF 20% 4V
| Capacitance |
22µF |
| Tolerance |
±20% |
| Voltage – Rated |
4V |
| Temperature Coefficient |
X7S |
| Mounting Type |
Surface Mount, MLCC |
| Operating Temperature |
-55°C ~ 125°C |
| Applications |
General Purpose |
| Ratings |
– |
| Package / Case |
0805 (2012 Metric) |
| Size / Dimension |
0.079″ L x 0.049″ W (2.00mm x 1.25mm) |
| Size |

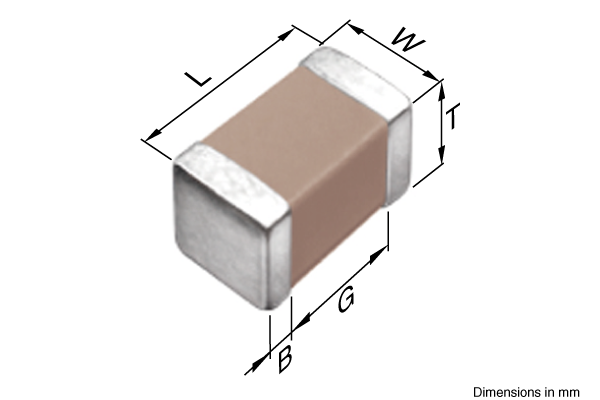

| Length(L) |
- 2.00mm ±0.20mm
|
| Width(W) |
- 1.25mm ±0.20mm
|
| Thickness(T) |
- 1.25mm ±0.20mm
|
| Terminal Width(B) |
- 0.20mm Min.
|
| Terminal Spacing(G) |
- 0.50mm Min.
|
| Recommended Land Pattern (PA) |
- 1.00mm to 1.30mm(Flow Soldering)
0.90mm to 1.20mm(Reflow Soldering)
|
| Recommended Land Pattern (PB) |
- 1.00mm to 1.20mm(Flow Soldering)
0.70mm to 0.90mm(Reflow Soldering)
|
| Recommended Land Pattern (PC) |
- 0.80mm to 1.10mm(Flow Soldering)
0.90mm to 1.20mm(Reflow Soldering)
|
| Electrical Characteristics |
| Capacitance |
- 22μF ±20%
|
| Rated Voltage |
- 4VDC
|
| Temperature Characteristic ? |
- X7S(±22%)
|
| Dissipation Factor (Max.) |
- 10%
|
| Insulation Resistance (Min.) |
- 4MΩ
|
| Other |
| Soldering Method |
- Flow
- Reflow
|
| AEC-Q200 |
- No
|
| Packing |
- Blister (Plastic)Taping [180mm Reel]
|
| Package Quantity |
- 2000pcs
|
