Description

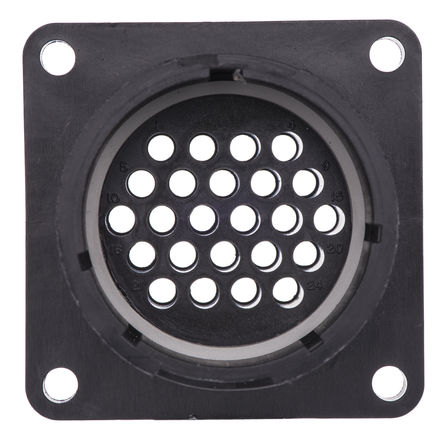

TE CONNECTIVITY / AMP 206838-3 Circular? Connector Receptacle SIZE 23, PANEL, Sealed CPC PIN 24 Position Crimp ST Panel Mount 24 Terminal 1 Port Bag
TE Connectivity Special Series 1 Two Piece Sealed CPC Receptacles
From TE Connectivity, this Series 1 Two Piece receptacle comes as panel mount or cable mount, with a multiple contact configurations and male and female variants available. The receptacle features a threaded coupling for secure mating retention with corresponding Series 1 connectors.
Part Specification:
Number of Contacts 24
Gender Female
Mounting Type Panel Mount
Termination Method Crimp
Shell Size 23
Contact Gender Male
Body Orientation Straight
- Type : Sealed CPC
- Gender : RCP
- Shell Size / Insert Arrangement : 23-24
- Number of Contacts : 24POS
- Contact Gender : PIN
- Mounting Style : Panel
- Body Orientation : Straight
- Strain Relief : No
- Contact Classification : 24Signal
- Product Length (mm) : 34.29mm
- Product Depth (mm) : 44.45mm
- Product Height (mm) : 44.45mm
Crimp termination lightweight glass-filled nylon connectors, suited to industrial, process control and transportation usage. Three styles of connector shells are available, fixed receptacles, free (in-line) receptacles and cable mounted plugs. All are available in pin or socket configurations. The free receptacles allow in-line connections with the cable mount plugs. All are rated at 250Vac, with a temperature rating of -55°C to +105°C. Insulation resistance ?5000M?.,Series 1 offers standard density. Series 2 enables a higher density of contacts and series 3 a low density of contacts for power applications. For full information on contacts and tooling see other Range ‘AMP CPC Contacts and Tooling’,Sealing accessories are available for IP65 protection for Series 1. Fixed receptacles require a flange seal. For cable mounting shells use standard series 1 shells in conjunction with a cable entry seal.,Series 3 connectors are rated at 35A and use pin contacts stock no. 282-6292 (16-12awg), stock no. 282-6309 (10-8awg) and socket contacts stock no. 282-6315 (16-12awg), stock no. 282-6321 (10-8awg). Note also that the gland adaptor backshells connect any standard PG threaded cable gland to the respective CPC cable or panel mounted shell. For ranges of cable glands please see the ‘Cable Accessories’ section.
Manufacturer:TE Connectivity / AMP
Datasheet:TE/206838-3.pdf
