Description
Conn, D-Sub, Cable Plug, 15Pos, STR, HDP-20Series, CrimpSnap, 20AWG, ShieldingEncl.Kit
- High performance
- UL94V-0 Flammability rating
AMPLIMITE D-Sub Connector, HDP-20 Series, Shielding Hardware Enclosure Kits

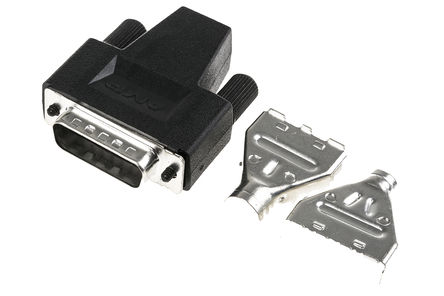

AMPLIMITE HDP-20 shielding hardware enclosure kits consisting of a d-sub connector, inner shield, outer shield, enclosure and two jackscrews. These AMPLIMITE HDP-20 d-sub shielding hardware enclosure kits have tin plated steel shields, 94V-0 black thermoplastic connector inserts and black PVC enclosures. The contacts for these HDP-20 d-sub connector kits must be purchased separately, see stock numbers 680-8910 and 680-9698 typically and insertion/extraction tool 446-822. The ferrules for these HDP-20 d-sub connector kits must also be purchased separately see stock numbers 301-8199 and 301-8228 typically. These HDP-20 d-sub shielding hardware enclosure kits will mate with the HDE series, HDP series and HD-20 series board mount d-sub connectors.
For female screwlocks see stock numbers 717-4470, 680-9288 typically
For male screw retainers see stock numbers 717-4543, 680-9288 and 450-9309 typically
For locking post assembly see stock number 450-9365
For 2 piece spring latch see stock number 450-9321
Note
Contacts and ferrules must be purchased separately
TE Connectivity AMPLIMITE D-Subminiature Connectors
Connectors and accessories from the Amplimite range.
Suitable for military, industrial or commercial applications and computer interfacing etc.
Manufacturer:TE Connectivity / AMP
Datasheet:ENG_CVM_1658657-1_O.pdf
