Description

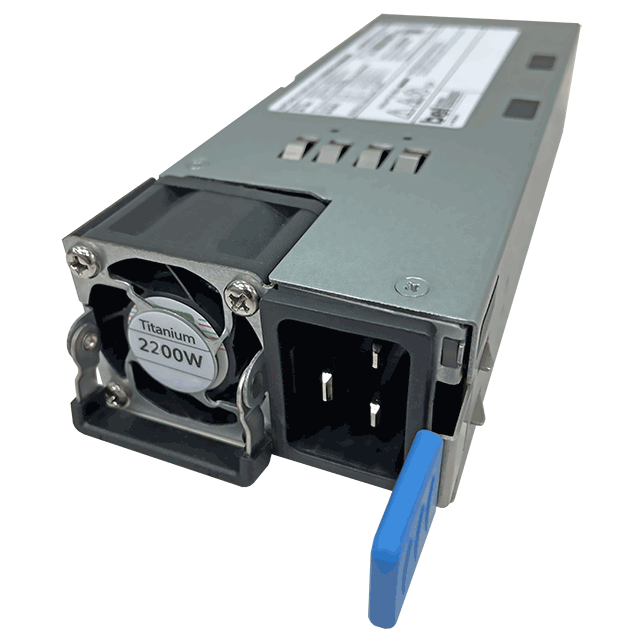

TEC2200-12-074NA Bel Power Solutions TEC2200 (2200W) Series Front End ITE (Commercial) AC/DC Converter 12V 178A 2136W Rack Mount
Features: Adjustable Output, DC Input Capable, Load Sharing, Remote Sense, Universal Input
Type: Front End
Voltage-Input: 90-264VAC,180-300VDC
Number of Outputs: 1
Voltage Output: 12V
Current Output: 178A
Power (Watts): 2136W
Applications: ITE (Commercial)
Operating Temperature: 0°C – 55°C
Size/Dimension: 7.28″Lx2.89″Wx1.57″H(185.0mmx73.5mmx40.0mm)
Mounting Type: Rack Mount
TEC2200-12-074xA is a 2200 W Common Redundant Power Supply (CRPS) power supply that converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 12 VDC for powering systems using distributed power architectures. The power supply is hot-swappable and supports N+1 redundant architecture. The high-power density helps to improve the overall system efficiency and enhance system reliability. The full digital control facilitates remote set-up, monitoring and control. TEC2200-12-074xA offers multiple protections including overvoltage, overtemperature, overcurrent, overpower & short circuit protection.
