Description

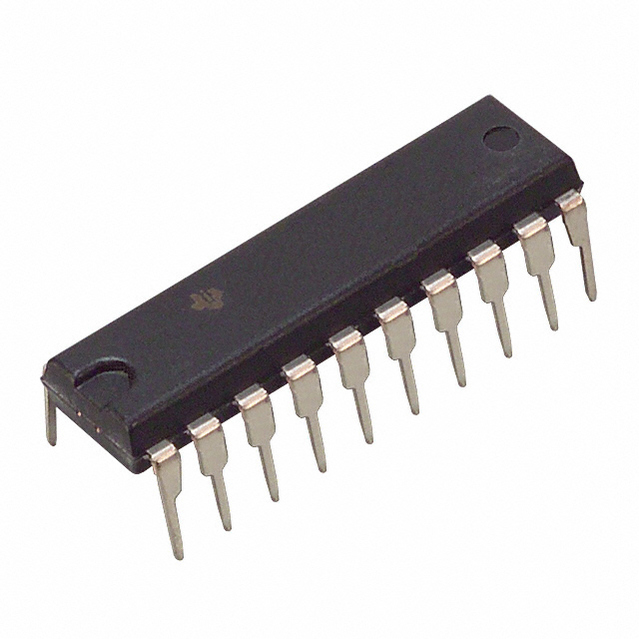

Texas Instruments TIBPAL16R8-10CN Simple Programmable Logic Device PDIP-20 Through Hole
These programmable array logic devices feature high speed and functional equivalency when compared with currently available devices. These IMPACT-X ™ circuits combine the latest Advanced Low-Power Schottky technology with proven titanium-tungsten fuses to provide reliable, high-performance substitutes for conventional TTL logic. Their easy programmability allows for quick design of custom functions and typically results in a more compact circuit board. In addition, chip carriers are available for futher reduction in board space.
All of the register outputs are set to a low level during power up. Extra circuitry has been provided to allow loading
of each register asynchronously to either a high or low state. This feature simplifies testing because the registers
can be set to an initial state prior to executing the test sequence.
Manufacturer Part Number: PAL16R8-10CN
Manufacturer: Texas Instruments
