Description

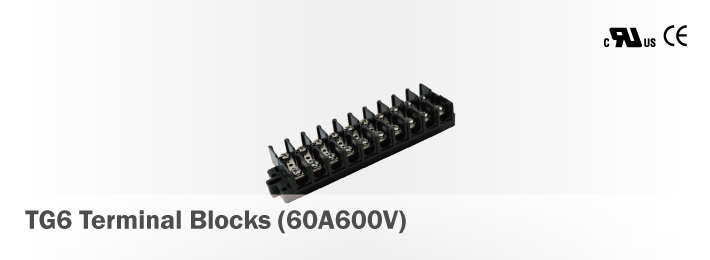

TG603-C SUNS International Terminal Block 600V/60A 3 Pole UL RATED RoHS
-15.88mm center spacing -Accepts wire sizes from 22 through 6 AWG Cu -#10-32 philslot, zinc-plated steel terminal screws(Recommended torque: 2 0 in. – lb.) -Molded of materials maximum temperature rating 105 C thermoplastic (UL Rated 94V-0)
Features:
Heavy-duty , corrosion-resistant screws, surface plates and optional hardware
Accessory hardware provides a variety of termination options.
Available cover helps prevent contact with live terminals
Manufacturer:Electronic Components
Datasheet:TG603-C.pdf
