Description

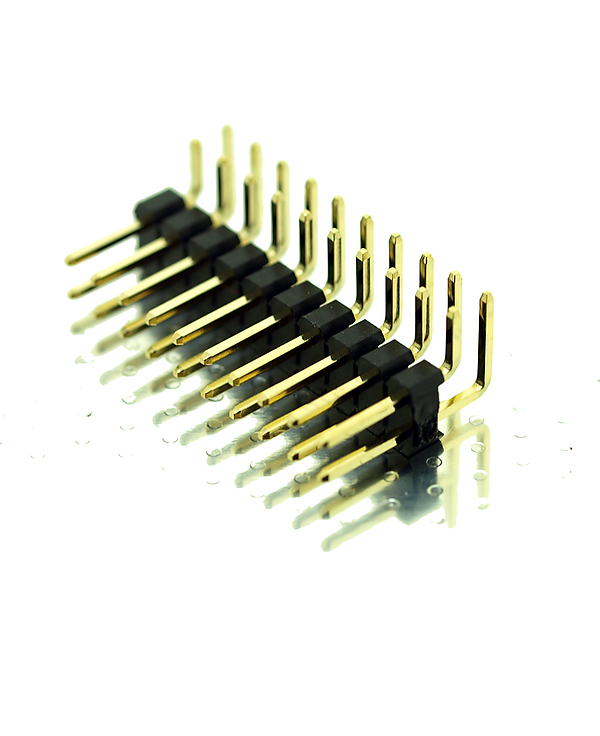

THD-20-R-RA Connector 2.54mm pitch dual row through hole PCB footprint
Industry standard right angle header/ terminal specification
Standard 2.54mm insulator profile
Standard 6mm contact post, 3mm solder tail
No. of contacts 02 to 40 pins per row
Contact Material: Brass
Contact Plating: Gold Flash Plated
Body: PBT UL94V-0 Rated Black
Rated Current: 3A
DWV – AC500V
Insulation Resistance: 5000 Mohm Max.
Operating Temperature: -40C to +105C
RoHS compliant
Manufacturer:Electronic Components
Datasheet:Others/165.pdf
