Description

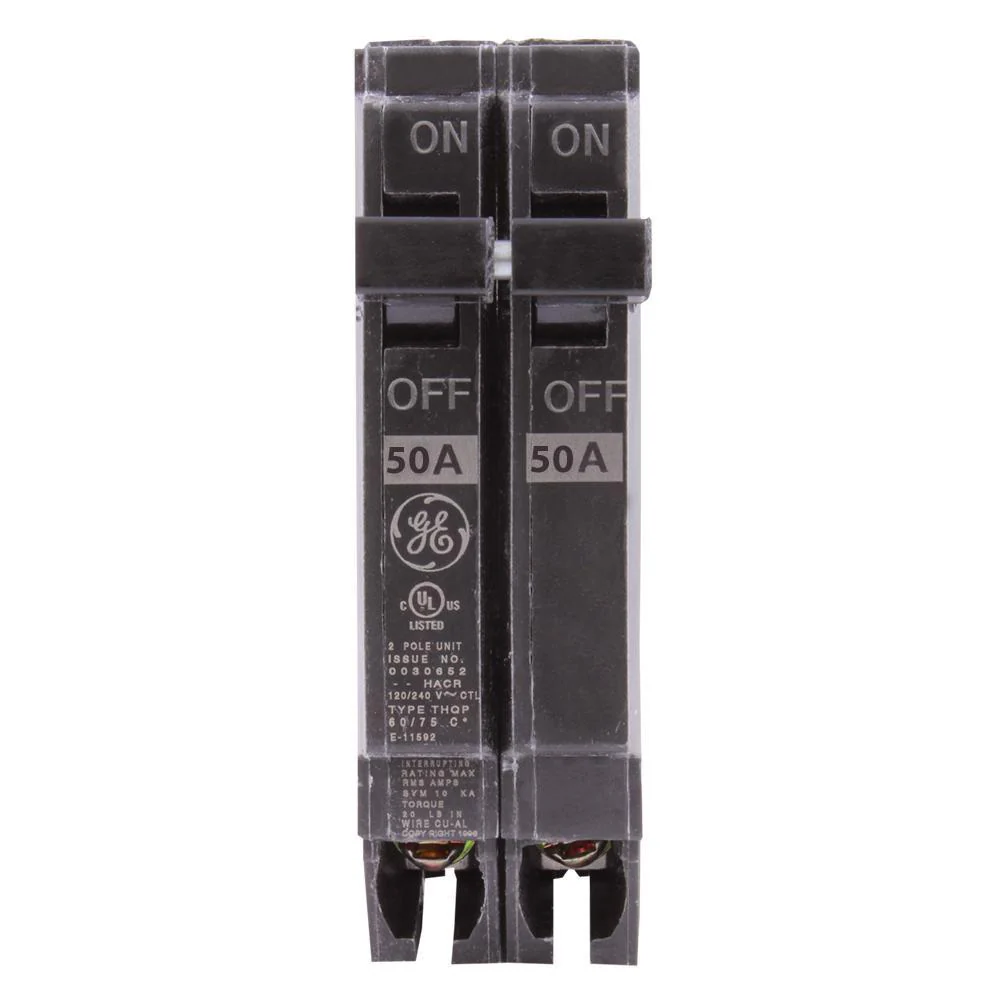

THQP250 ABB GE 2Pole 50A 120/240V 1/2″ Plug In Breaker Molded Case Circuit Breaker, Thermal and Fixed Magnetic, Molded Case Type; 1 Inch Width X 2-3/8 Inch Depth X 3-9/32 Inch Height Size; Load Center and Panelboard Used On; 14 to 8 Awg (Copper), 12 to 8 Awg (Aluminum) Wire Size; Ul Approval
THQP breakers are a smaller, smarter solution for today’s cost and quality conscious contractors and homeowners. Half the width of standard breakers they allow the use of smaller load centers and for maximum saving of space and money. THQP breakers are one-half the width of standard GE breakers but identical in design.
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
For use in GE residential panels.
Specifications:
Manufacturer: General Electric
Family : THQP (Spacesaver) Series
Cat. No. : THQP250
2 Pole
50 Amp
240 Volt
Connection : Plug-In
Phase : 1
Interrupting Rating 10000 Ampere
Dimensions (H x W x L): 3″ x 1″ x 3″
Authentic General Electric Product
CSA Approved and UL Listed
Commodity Level Descrip 2 Pole Standard Trip Plug-In Circuit Breakers
Brand Name Series THQP
Manufacturer General Electric
UPC 783164085778
UNSPSC 39121603
Commodity Code 32112
Number of Poles 2
Mounting 1/2 Inch Plug-In
Terminal Type Copper/Aluminum Load Lug, Plug-In
Type Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Voltage Rating 120/240 VAC
Size 1 Inch W x 2-3/8 Inch D x 3-9/32 Inch H
Wire Size 8 to 4 AWG (Copper/Aluminum)
Current Rating 50 Ampere
Approval UL
Interrupting Rating 10 Kiloampere
Additional Info Trip Type Non-Interchangeable; Frame Type THQP; Trip Function LI; Application Heating, Air Conditioning, Refrigeration
