Description

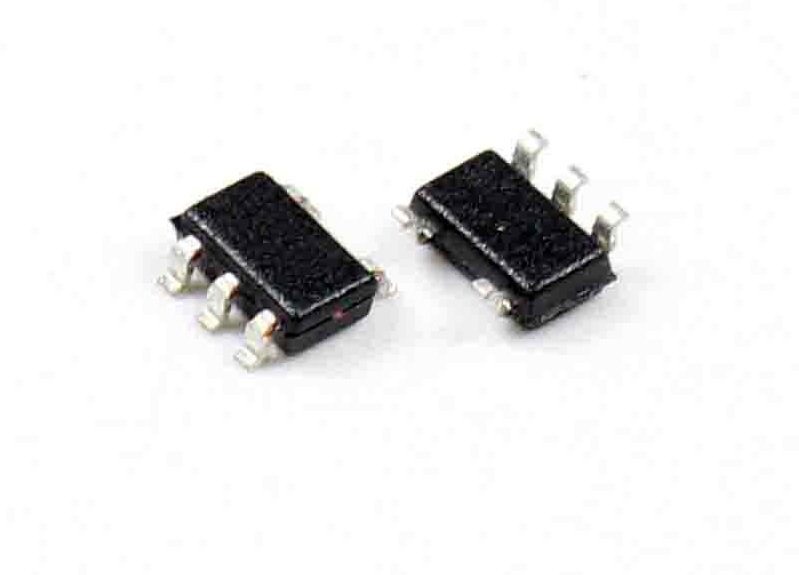

TI TPS60403DBVR from Texas Instruments Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin, Vin/2 1 Output 60mA SC-74A, SOT-753
Specifications
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOT-23-5
Topology: Boost, Buck, Inverting
Output Voltage: – 1.6 V to – 5.25 V
Output Current: 60 mA
Number of Outputs: 1 Output
Input Voltage, Min: 1.6 V
Input Voltage, Max: 5.5 V
Quiescent Current: 1 mA
Switching Frequency: 250 kHz
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Series: TPS60403
Packaging: Reel
Packaging: Cut Tape
Brand: Texas Instruments
Function: Inverting, Step Up, Step Down
Height: 1.15 mm
Input Voltage: 1.6 V to 5.5 V
Length: 2.9 mm
Operating Supply Current: 400 uA
Product: Voltage Regulators
Product Type: Switching Voltage Regulators
Reel: 3000
Subcategory: PMIC – Power Management ICs
Type: Charge Pump (Inductorless)
Width: 1.6 mm
Unit Weight: 0.001376 oz
Manufacturer: Texas Instruments
MFG Part #: TPS60403DBVR
