Description

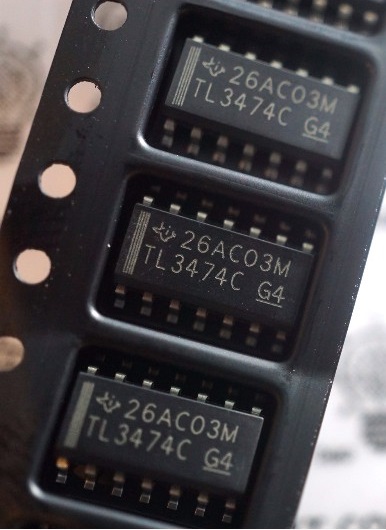

TL3474ACN Texas Instruments Op Amp Quad High Slew Rate Amplifier 18V/36V 14-Pin PDIP Tube RoHS
Specifications
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers – Op Amps
Mounting Style: SMD/SMT
Package / Case: PDIP-14
Number of Channels: 4 Channel
Supply Voltage – Max: 36 V
GBP – Gain Bandwidth Product: 4 MHz
Output Current per Channel: 27 mA
SR – Slew Rate: 10 V/us
Vos – Input Offset Voltage: 3 mV
Supply Voltage – Min: 4 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 105 C
Ib – Input Bias Current: 500 nA
Operating Supply Current: 3.5 mA
Shutdown: No Shutdown
CMRR – Common Mode Rejection Ratio: 97 dB
en – Input Voltage Noise Density: 49 nV/sqrt Hz
Series: TL3474A
Packaging: Tube
Amplifier Type: High Slew Rate Amplifier
Features: High Cload Drive
Height: 4.57 mm
Input Type: Rail-to-Rail
Length: 19.3 mm
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 6.35 mm
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
In – Input Noise Current Density: 0.22 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2 V
Operating Supply Voltage: 4 V to 36 V, +/- 2 V to +/- 18 V
Product Type: Op Amps – Operational Amplifiers
Factory Pack Quantity: 25
Subcategory: Amplifier ICs
Vcm – Common Mode Voltage: Negative Rail to Positive Rail – 3.2 V
Voltage Gain dB: 100 dB
Unit Weight: 0.032734 oz
Quality, low-cost, bipolar fabrication with innovative design concepts is employed for the TL3474, TL3474A
operational amplifiers. These devices offer 4 MHz of gain-bandwidth product, 13-V/s slew rate, and fast settling
time without the use of JFET device technology. Although the TL3474 and TL3474A can be operated from split
supplies, they are particularly suited for single-supply operation because the common-mode input voltage
range includes ground potential (VCC-). With a Darlington transistor input stage, these devices exhibit high input
resistance, low input offset voltage, and high gain. The all-npn output stage, characterized by no dead-band
crossover distortion and large output voltage swing, provides high-capacitance drive capability, excellent phase
and gain margins, low open-loop high-frequency output impedance, and symmetrical source/sink ac frequency
response. These low-cost amplifiers are an alternative to the MC34074/A and MC33074/A operational
amplifiers.
Manufacturer: Texas Instruments
MFG Part #: TL3474ACN
