Description
TLE2142ACD Texas Instruments Precision Amplifiers Op Amp Dual Wideband Amplifier 6MHZ 22V/44V 45V/uS 8-Pin SOIC Tube
Specifications
Manufacturer:Texas Instruments
Product Category:Precision Amplifiers
RoHS
Series:TLE2142A
Number of Channels:2 Channel
GBP – Gain Bandwidth Product:5.8 MHz
SR – Slew Rate:45 V/us
CMRR – Common Mode Rejection Ratio:85 dB to 108 dB
Output Current per Channel:50 mA
Ib – Input Bias Current:1.5 uA
Vos – Input Offset Voltage:0.75 mV
en – Input Voltage Noise Density:15 nV/sqrt Hz
Supply Voltage – Max:44 V
Supply Voltage – Min:4 V
Operating Supply Current:3.45 mA
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Shutdown:No Shutdown
Mounting Style:SMD/SMT

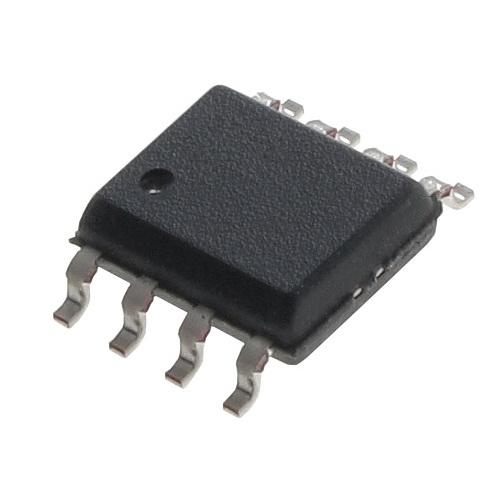

Package / Case:SOIC-8
Packaging:Tube
Amplifier Type:Wideband Amplifier
Features:High Cload Drive
Height:1.58 mm
Input Type:Rail-to-Rail
Length:4.9 mm
Product:Precision Amplifiers
Supply Type:Single, Dual
Technology:BiCOM
Width:3.91 mm
Brand:Texas Instruments
Dual Supply Voltage:+/- 3 V, +/- 5 V, +/- 9 V
In – Input Noise Current Density:1.92 pA/sqrt Hz
Maximum Dual Supply Voltage:+/- 22 V
Minimum Dual Supply Voltage:+/- 2 V
Operating Supply Voltage:4 V to 44 V, +/- 2 V to +/- 22 V
Product Type:Precision Amplifiers
Factory Pack Quantity:75
Subcategory:Amplifier ICs
Vcm – Common Mode Voltage:Negative Rail to Positive Rail – 2 V
Voltage Gain dB:106.85 dB
Unit Weight:0.002677 oz
Manufacturer: Texas Instruments
MFG Part #: TLE2142ACD
