Description

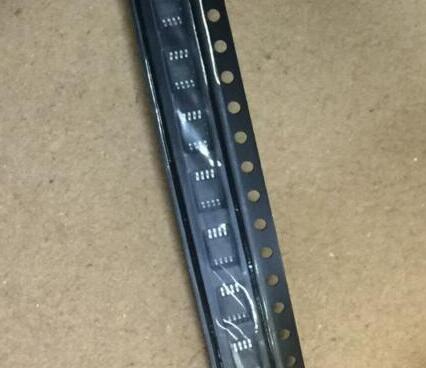

TLV2372IDGKR Texas Instruments Op Amp Dual Operational Amplifier, 2 Amplifier, 3 MHz, 2.4 V/us, 2.7V to 16V, 1.35V to 8V, VSSOP, 8 Pins RoHS
Specifications
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers – Op Amps
Mounting Style: SMD/SMT
Package / Case: VSSOP-8
Output Current per Channel: 16 mA
Vos – Input Offset Voltage: 4.5 mV
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Ib – Input Bias Current: 60 pA
Operating Supply Current: 750 uA
CMRR – Common Mode Rejection Ratio: 84 dB
Series: TLV2372
Packaging: Cut Tape
Packaging: Reel
Amplifier Type: General Purpose Amplifier
Height: 0.97 mm
Input Type: Rail-to-Rail
Length: 3 mm
Output Type: Rail-to-Rail
Product: Operational Amplifiers
Supply Type: Single, Dual
Width: 3 mm
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V
In – Input Noise Current Density: 0.0006 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 8 V
Minimum Dual Supply Voltage: +/- 1.35 V
Operating Supply Voltage: 2.7 V to 16 V, +/- 1.35 V to +/- 8 V
Pd – Power Dissipation: 481 mW
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 70 dB
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Voltage Gain dB: 110 dB
Unit Weight: 0.000670 oz
Manufacturer: Electronic Components
MFG Part #: TLV2372IDGKR
