Description

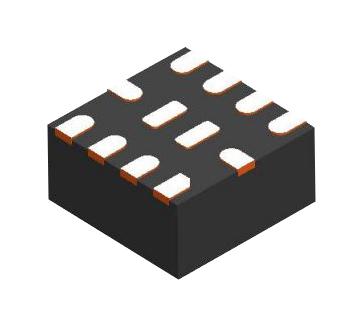

TLV62585RWTT Texas Instruments Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 12-PowerVFQFN RoHS
Specifications
Manufacturer:Texas Instruments
Product Category:Switching Voltage Regulators
Mounting Style:SMD/SMT
Package / Case:VQFN-HR-12
Output Voltage:600 mV to 5.5 V
Output Current:3 A
Number of Outputs:1 Output
Input Voltage MAX:5.5 V
Topology:Buck
Input Voltage MIN:2.5 V
Switching Frequency:1.5 MHz
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 125 C
Series:TLV62585
Packaging:Cut Tape
Packaging:Reel
Input Voltage:2.5 V to 5.5 V
Operating Temperature Range:- 40 C to + 125 C
Quiescent Current:35 uA
Type:Synchronous Buck Converter
Brand:Texas Instruments
Shutdown:Shutdown
Development Kit:TLV62585EVM-824
Product Type:Switching Voltage Regulators
Factory Pack Quantity:250
Subcategory:PMIC – Power Management ICs
Supply Voltage – Min:2.5 V
Unit Weight:0.000300 oz
The TLV62585 device is a high-frequency synchronous step-down converter optimized forcompact solution size and high efficiency. The device integrates switches capable of delivering anoutput current up to 3 A. At medium to heavy loads, the converter operates in pulse widthmodulation (PWM) mode with typical 1.5-MHz switching frequency.
Manufacturer: Texas Instruments
MFG Part #: TLV62585RWTT
