Description

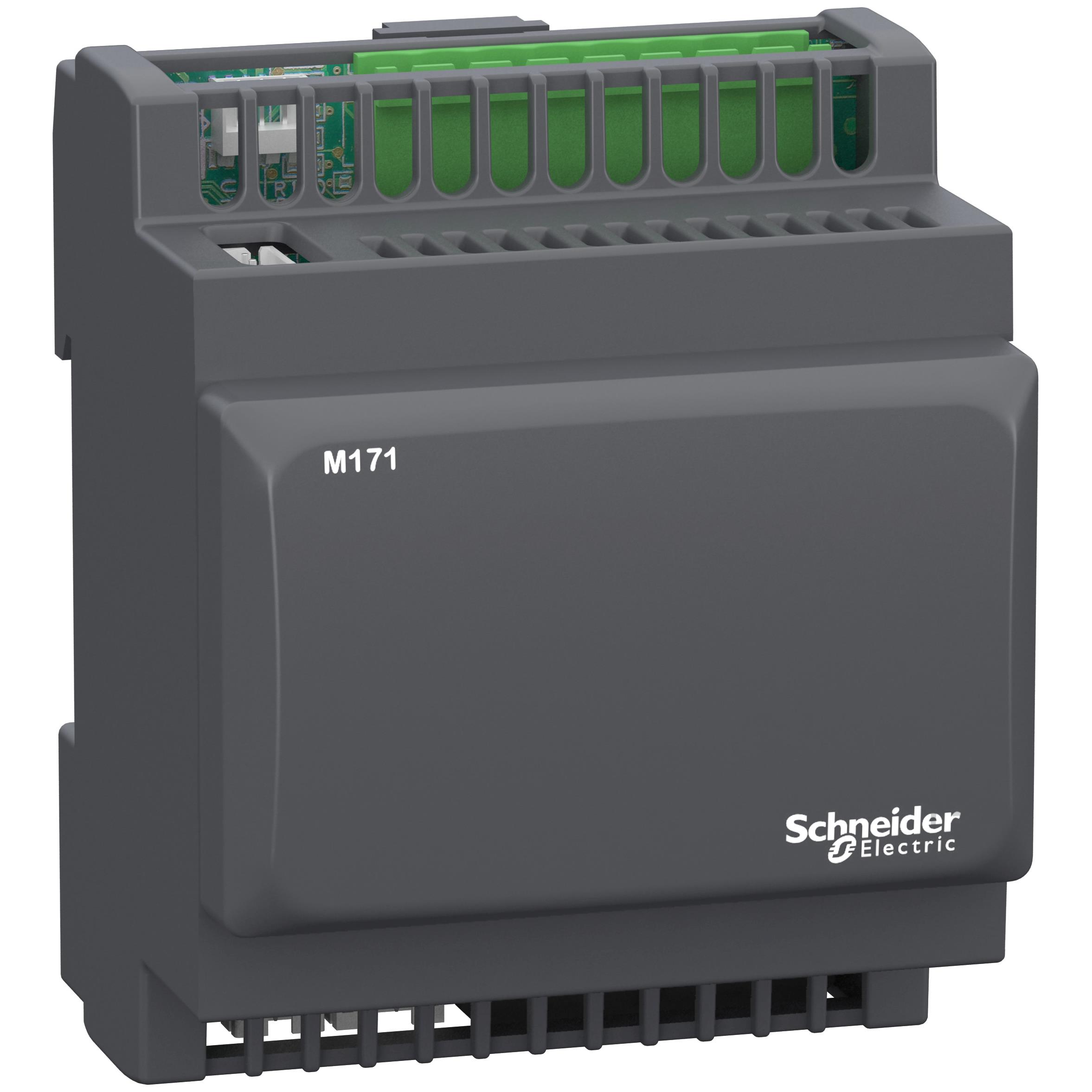

TM171OBM22R Schneider Electric Modicon M171 Input, Output (I/O) Module 12 ~ 24VAC/DC 11 Analog (5), Relay (5), Solid State (1) 11 Digital (6), Analog (5) DIN Rail Screw Terminal for Modicon M171, Modicon M172 Series. Schneider Modicon Series PLCs provide coverage for various automation tasks. Most Modicon Series PLCs use free-to-download Machine Expert software. Dual channel modules support Ethernet, serial, and CANopen for downstream and upstream communication.
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 6 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 12V to 24V, ±10% AC. It is an IP20 rated product. Its dimensions are 70.2mm (width) x 61.6mm (depth) x 87mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for flush mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert – HVAC are designed for maximizing profitability and energy efficiency.
Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert – HVAC
All of the features and functions you need to design and build machines more profitably are already embedded
Application Function Blocks reduce energy consumption and help to improve system efficiency
Stay connected everywhere with multiple BMS connectivity and web server embedded
Manufacturer PN: TM171OBM22R
Manufacturer: Schneider
