Description

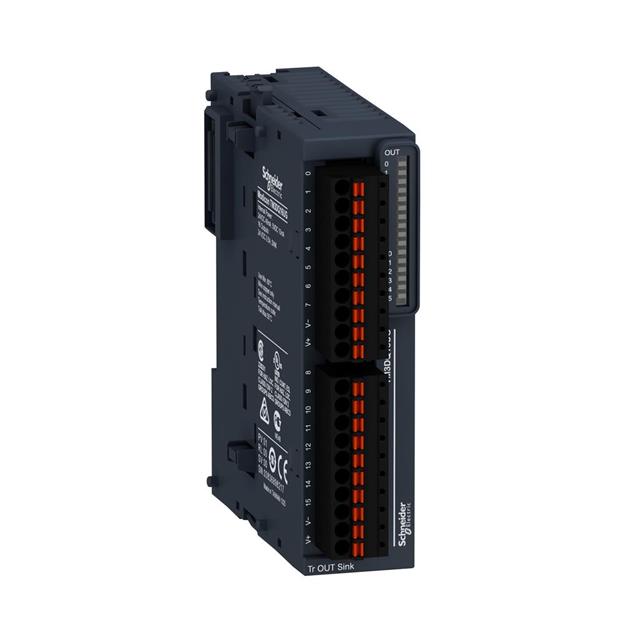

TM3DQ16UG Schneider Electric Discrete output module, Modicon TM3, 16 outputs transistor NPN (spring), DIN Rail Screw Terminal for Modicon TM3 Series. This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs. This discrete output module provides 16 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24VDC and a current consumption of 20mA at 24VDC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic AC, non-insulated between outputs. It works via a 24VDC external power supply. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20-rated product. Its dimensions are 27.4mm wide, 84.6mm deep and 90mm high. It weighs 0.105kg. It is designed to operate or control a device connected to an output module and decisions sent by the PLC. This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc. This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software. It is delivered in 1 package (PCE type). It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting. The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers. From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution.
|
Characteristic |
Value |
|
|---|---|---|
|
Number of output channels |
16 |
|
|
Number of channel groups |
1 common line on 2 pins for 16 channels |
|
|
Output type |
Transistor |
|
|
Logic type |
Sink |
|
|
Rated output voltage |
24 Vdc |
|
|
Output voltage range |
19.2…28.8 Vdc |
|
|
Rated output current |
0.5 A |
|
|
Total output current |
8 A |
|
|
Voltage drop |
0.4 Vdc max. |
|
|
Leakage current when switched off |
0.1 mA max. |
|
|
Maximum power of filament lamp |
12 W |
|
|
Inductive load |
L/R = 10 ms |
|
|
De-rating |
– 10…55 °C (14…131 °F) |
No de-rating |
|
Turn on time |
450 µs |
|
|
Turn off time |
450 µs |
|
|
Protection against short circuit |
No fast external fuse required |
|
|
Short circuit output peak current |
N/A |
|
|
Automatic rearming after short circuit or overload |
N/A |
|
|
Protection against reverse polarity |
No |
|
|
Clamping voltage |
Typically 50 Vdc |
|
|
Switching frequency |
Under resistive load |
100 Hz max. |
|
Isolation |
Between output and internal logic |
500 Vac |
|
Between channel group |
N/A |
|
|
Connection type |
TM3DQ16U |
Removable screw terminal blocks |
|
TM3DQ16UG |
Removable spring terminal blocks |
|
|
Connector insertion/removal durability |
Over 100 times |
|
|
Current draw on 5 Vdc internal bus |
20 mA (all outputs on) 5 mA (all outputs off) |
|
|
Current draw on 24 Vdc internal bus |
16 mA (all outputs on) 0 mA (all outputs off) |
|
Manufacturer PN: TM3DQ16UG
Manufacturer: Schneider
