Description

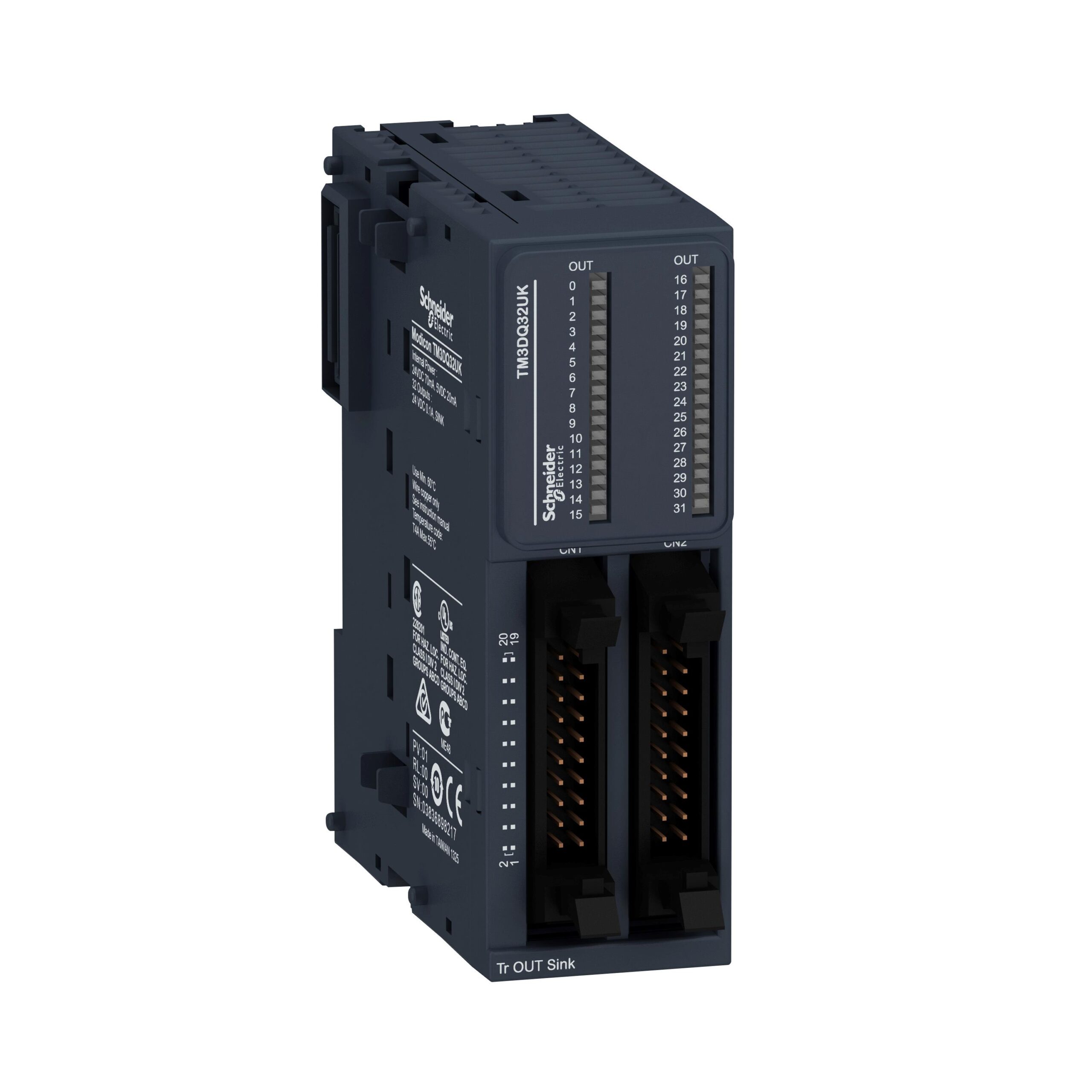

TM3DQ32UK Schneider Electric Modicon TM3 Output Module 24VDC 32 Solid State DIN Rail D Sub for Multiple Series. This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 32 transistor outputs with sink (negative)logic. It is an output module with an output voltage of 24V DC and a current consumption of 40mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with HE-10 connector outputs for electrical connection. It is an IP20 rated product. Its dimensions are 33.5mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Range of Product
Modicon TM3
Product or Component Type
Discrete output module
Range Compatibility
Modicon M241
Modicon M251
Modicon M221
Modicon M262
Device Application
Industrial Application
Discrete output number
32
Discrete output logic
Negative logic (sink)
Discrete output voltage
24 V DCtransistor
ComplementaryDiscrete output number
32 transistor
Discrete output current
100 mA transistor output
Response time on output
450 µs maximum (turn on)
450 µs maximum (turn off)
Maximum leakage current
0.1 mA
Maximum voltage drop
<0.4 V
Maximum tungsten load
<1.2 W
Safety reliability data
MTBF = 61 years 40 °C
Power supply type
Electronic powered by internal bus
Typical current consumption
5 mA 5 V DC
0 mA 24 V DC
20 mA 5 V DC
10 mA 24 V DC
Electrical connection
HE-10 connector for outputs
Maximum cable distance between devices
Unshielded cable <16.4 ft (5 m) transistor output
Isolation between channels and bus
500 V AC
Local signalling
1 LED per channel (green) for output status
Housing Colour
Grey
Mounting support
Top hat type TH35-15 rail IEC 60715
Top hat type TH35-7.5 rail IEC 60715
plate or panel with fixing kit
Height
3.5 in (90 mm)
Width
1.3 in (33.5 mm)
Depth
3.2 in (81.3 mm)
Product Weight
0.247 lb(US) (0.112 kg)
EnvironmentIP Degree of Protection
IP20
Protective treatment
None
Marking
CE
Product certifications
CE
CULus
UKCA
RCM
EAC
CULus HazLoc
Standards
IEC 61131-2
Ambient air temperature for operation
14…95 °F (-10…35 °C) vertical installation)
14…131 °F (-10…55 °C) horizontal installation)
Ambient air temperature for storage
-13…158 °F (-25…70 °C)
Relative humidity
10…95 % without condensation for operation
10…95 % without condensation for storage
Operating altitude
0...6561.68 ft (0...2000 m)
Pollution degree
2
Vibration resistance
3.5 mm 5…8.4 Hz) on DIN rail
3 gn 8.4…150 Hz) on DIN rail
3.5 mm 5…8.4 Hz) on panel mounting
3 gn 8.4…150 Hz) on panel mounting
Shock resistance
15 gn 11 ms
Ordering and shipping detailsCategory
US10MSX22533
Discount Schedule
0MSX
GTIN
3606480611612
Returnability
No
Country of origin
TW
Packing UnitsUnit Type of Package 1
PCE
Nbr. of units in pkg.
1
Package 1 Height
2.953 in (7.500 cm)
Package 1 Width
4.134 in (10.500 cm)
Package 1 Length
4.921 in (12.500 cm)
Package weight(Lbs)
7.937 oz (225.000 g)
Unit Type of Package 2
S02
Number of Units in Package 2
9
Package 2 Height
5.906 in (15.000 cm)
Package 2 Width
11.811 in (30.000 cm)
Package 2 Length
15.748 in (40.000 cm)
Package 2 Weight
5.181 lb(US) (2.350 kg)
Unit Type of Package 3
P12
Number of Units in Package 3
288
Package 3 Height
29.528 in (75.000 cm)
Package 3 Width
31.496 in (80.000 cm)
Package 3 Length
47.244 in (120.000 cm)
Package 3 Weight
187.393 lb(US) (85.000 kg)
Contractual warrantyWarranty (in months)
18
Manufacturer PN: TM3DQ32UK
Manufacturer: Schneider
