Description

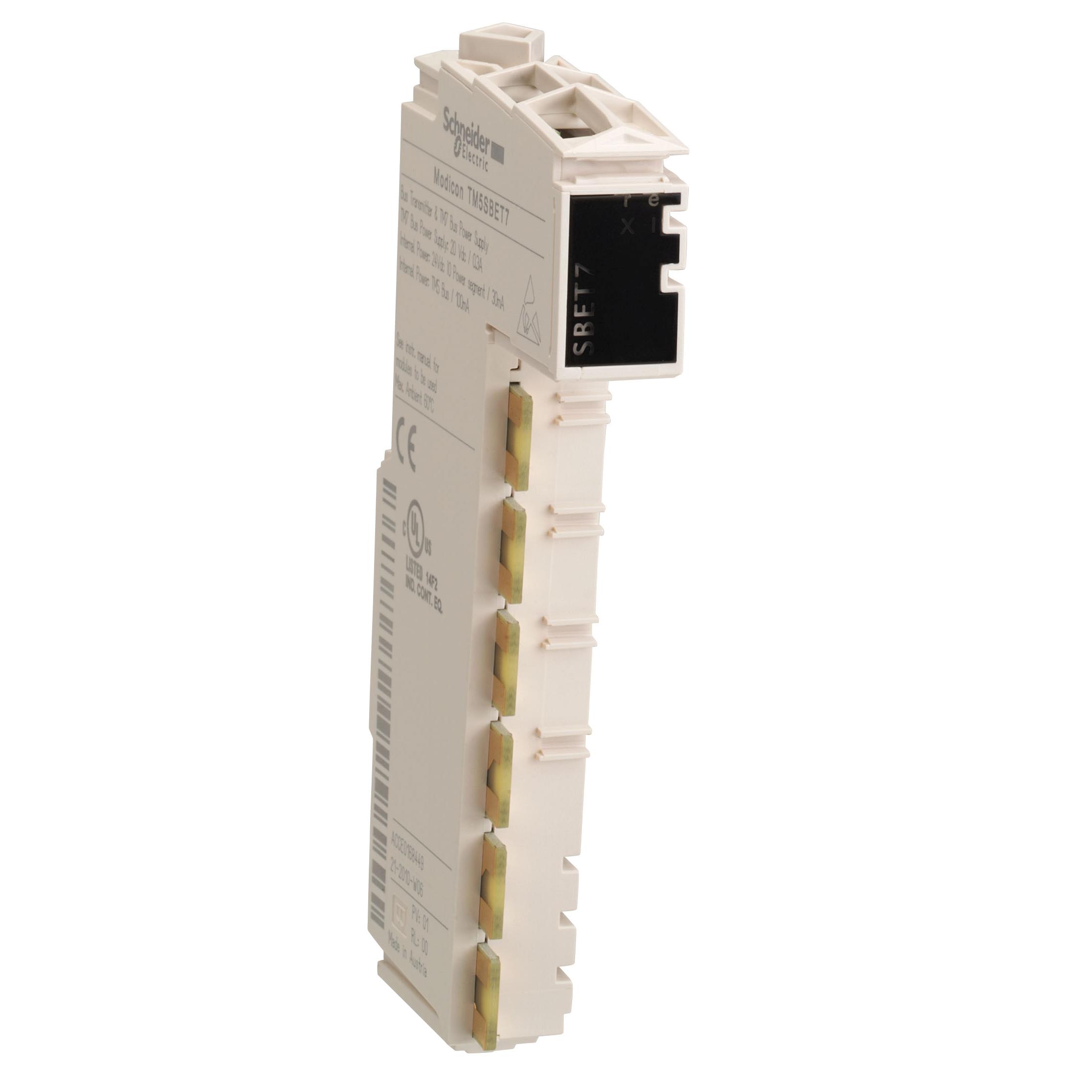

TM5SBET7 Schneider Electric Remote transmitter module, Modicon TM5, communication between I/O IP20 and IP67, DIN Rail Screw Terminal for Modicon TM5 Series. This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote transmitter module provides communication between IP20 and IP67 I/O islands and distribute power. It is a remote transmitter module with a current consumption of 25mA at 24V DC input/output, 100mA at 5V DC bus and a maximum power dissipation of 1.1W. This product is part of a flexible and scalable I/O configuration for automation solutions. The bus length is 2500m and maximum cable distance between devices is 100m. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
|
General Characteristics |
|
|---|---|
|
Rated power supply voltage |
24 Vdc |
|
Power supply range |
20.4…28.8 Vdc |
|
24 Vdc I/O segment current draw |
25 mA |
|
TM5 power bus current draw |
100 mA |
|
Power dissipation |
1.10 W max. |
|
Weight |
25 g (0.9 oz) |
|
ID code for firmware update |
41528 dec |
Manufacturer PN: TM5SBET7
Manufacturer: Schneider
