Description

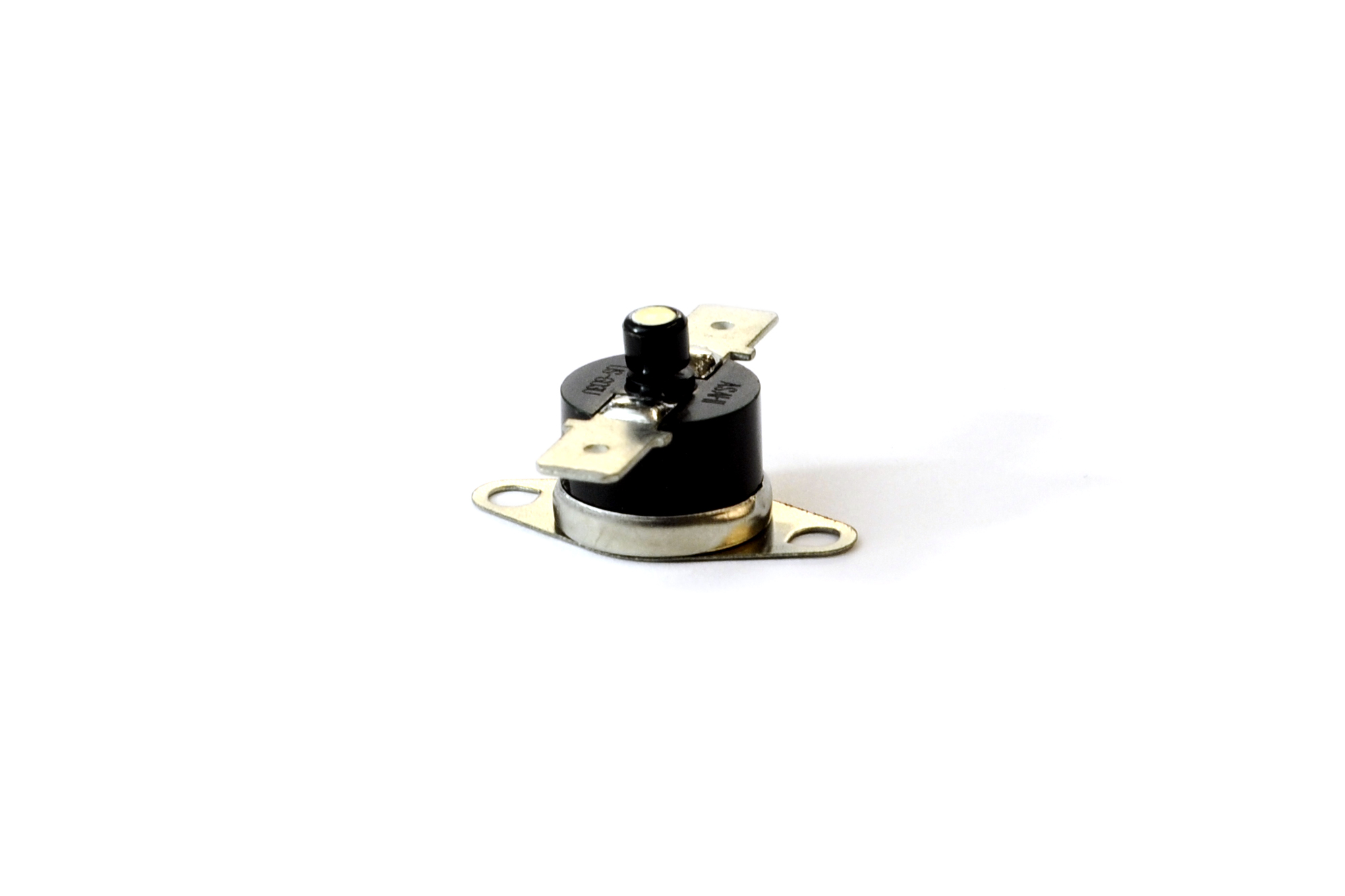

TO-400-QCM Selco Products Thermostat manual reset, opens at 400F +- 11F, .250″ horizontal terminals
1. thermostat opens at 400 f 11 f (205 c 6 c) and manual resettable
a. tolerance subject to change based on application
b. temperature rate of rise 1 f (.5 c) per minute
2. electrical ratings:
240vac, 25 amps, resistive, 6,000 cycles
250vac, 16 amps, resistive, 6,000 cycles
380vac, 4 amps, resistive, 6,000 cycles
3. insulation resistance: 100m ohms or more (with 500vdc megger)
4. circuit resistance: 50m ohms or less (initial value)
5. dielectric strength: 1,500vac/1 minute or 1,800vac/1 second
6. terminals: .250 x .032
7. assembly is rohs compliant
thermostat approvals – ul file no. e9977, csa file no. lr53590
Manufacturer:Electronic Components
Datasheet:TO-400-QCM-Sheet1.pdf
