Description

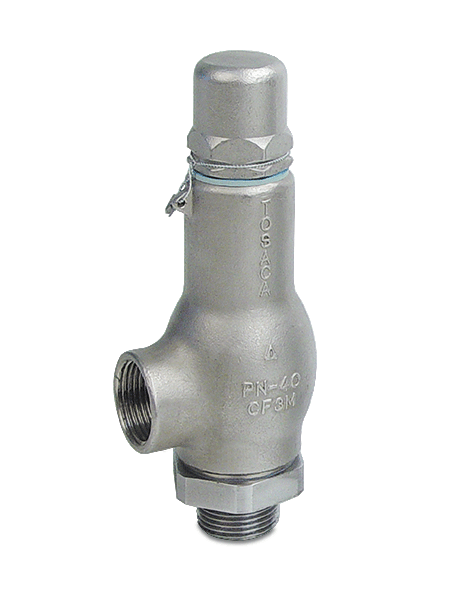

Tosaca Model 1216 Safety Relief Valve, 2″ x 2″ PN-40 Stainless steel A351 CF3M+ECTFE, including TAG Number Direct spring loaded; Full lift safety valve End connections: DIN 259 NPT-M / NPT-F
Type: Safety Relief valves
Connections/Rating: Threaded BSP/NPT, PN-40
Dimensions: 1/2″x3/4″ to 2″x2″
Material: Stainless steel 316 L and Duplex
Temperature range: -30 to +350C, Cryogenic service until -196C
Technical information Applications: Steam, gases, vapours and liquids
Minimum Set pressure: 0,2 barg
Overpressure: 10%
Blowdown: Gases 10%, liquids 20%
Tolerance Set pressure: 3%
Normative Calculation: EN-4126-1 /7
Design: EN-12516-1, EN-4126-1 /7, DIN 259 and ANSI B2.1
Materials: EN
Inspection: EN-4126-1 /7
Based in Barcelona (Spain), TOSACA is a manufacturer of safety relief valves. The company was established in 1989 and counts on a long experience in its industry. TOSACA supplies safety relief valves to more than 54 countries, many of them with stock and workshops approved by TOSACA. This allows the company to offer efficient delivery times and a faster response to customers. All TOSACA’s valves are designed, manufactured, and certified according to CE and ASME. TOSACA is the specialist manufacturer of safety relief valves with a complete range of the size ½ to 20″, rating until ANSI 2500, and all types of materials such as nodular, carbon steel, low temperature carbon steel, stainless steel, Inconel, Duplex, SuperDuplex and special coating in ECTFE/ Halar.
