Description

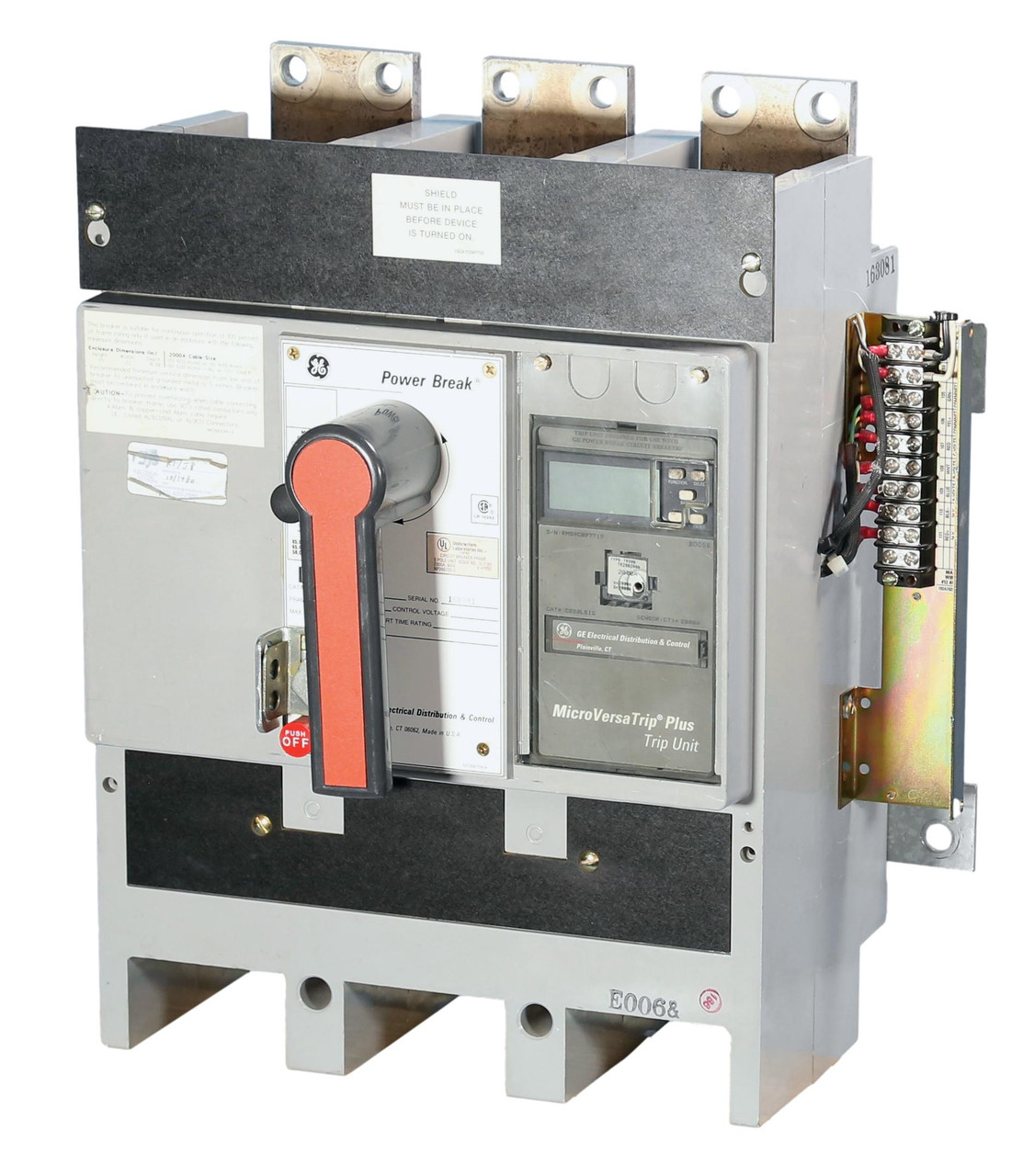

General Electric TP1616TTR Insulated Case Circuit Breaker. Family Power Break I; Type TP; 3 Pole; 3 Phase; 1600 Amp; 65kA@480V AIC; Bolt-On Mounting. The GE line of Power Break Insulated case circuit breakers offers the rugged, reliable type of system protection critical for heavy-duty applications. Power Break circuit breakers are rated up to 200,000 amperes rms symmetrical interrupting capacity without fuses or current limiters. The Power Break design consists of five physical envelope sizes, providing protection from 100 to 4000 amperes.
Model Number TP1616TTR
Manufacturer GE
Group Circuit Breakers
Type TP
Amperage 1600
Voltage 600
Poles 3
Phase 3
Family Power Break I
AIC Rating 65kA@480V
Connection Bolt-On
Protection Solid State
Function G Available, I, L, S
Insulated Case Circuit Breakers
Power Break Circuit Breaker
1600 Ampere Capacity/1600A Trip LSIG
Adjustable Ground
3 Pole
65k Rated @ 480VAC
600 VAC
Micro Versa Trip “PLUS” C216LSIG
Industrial Applications
