Description

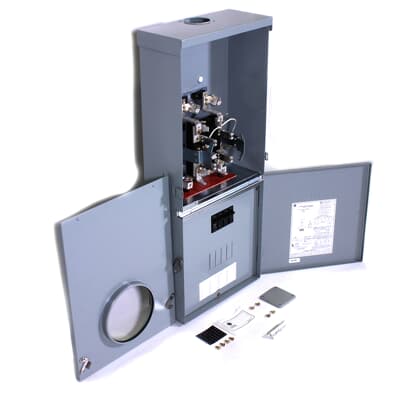

GE PowerMark Gold™ TSM415CSCU 3-Wire 4/8-Circuit Main Breaker Meter Socket Loadcenter With Bonded Neutral, 120/240 VAC, 150 A, 1 Phase, NEMA 3R Enclosure
PowerMark Gold Meter Socket Load Centers are an ideal option for residential applications. Additonally, PowerMark Gold Meter Socket Load Centers provide increased reliability and maximum circuit layout flexibility. All our PowerMark Gold Meter Socket Load Centers are built with high-quality materials for extended durability. Furthermore, their perfected design allows for an easy and fast installation. The TSM415CSCU is a main breaker meter socket with a ring and features spaces for 4, 1″ breakers, a 150A main ampere rating, a copper bus, and an outdoor suitable, surface enclosure.
Specifications
Amperage Rating |
150 A
|
Amperage Rating |
150 A
|
Enclosure |
Outdoor
|
Enclosure |
Outdoor
|
Interrupt Rating |
10 10
|
Load Regulation |
120/240V ac
|
Load Regulation |
120/240V ac
|
Mounting |
1
|
Number Of Feeders |
Either
|
Phase |
1
|
Phase |
1
|
Special Features |
PowerMark Gold Meter Socket Load Centers are an ideal option for residential applications. Additonally, PowerMark Gold Meter Socket Load Centers provide increased reliability and maximum circuit layout flexibility. All our PowerMark Gold Meter Socket Load Centers are built with high-quality materials for extended durability. Furthermore, their perfected design allows for an easy and fast installation. The TSM415CSCU is a main breaker meter socket with a ring and features spaces for 4, 1″ breakers, a 150A main ampere rating, a copper bus, and an outdoor suitable, surface enclosure.
|
Standard |
UL
|
Standard |
UL
|
Type |
Meter Socket Load Center
|
Wiring Configuration |
3 Wire
|
Package Dimensions (L x W x H) |
25 IN x 15 IN x 6 IN
|
Package Dimensions (L x W x H) |
63.5 cm x 38.1 cm x 15.24 cm
|
Package Weight (Imperial) |
33.500 L
|
Package Weight (Metric) |
15.196 kg
|
Phase
1
UNSPSC
39121101
Wire Size
6 AWG to 350 kcmil Aluminum/Copper
Application
Outdoor and Residential Applications
Mounting Type
Surface
Terminal Type
Feed-Through Lug
Enclosure Type
NEMA 3R
Voltage Rating
120/240
Type
3-Wire 4/8-Circuit Main Breaker
Includes
Removable Closing Cap
Cover Type
Ring
Dimensions
28-1/2 in H x 14 in W x 4-1/2 in D
Amperage Rating
150
Features
Increased durability and reliability
Maximum circuit layout flexibility and ease of installation add up to a lower total installed cost
Hinged door is removable for installation convenience
Accepts 1 in THQL or 1/2 in THQP branch circuit breakers
Minimum 100% neutral terminations
Generous wire room
3 in concentric knockout
Factory installed main breaker
1-piece copper bus, tin plated for corrosion resistance
TSM415CSCU
