Description

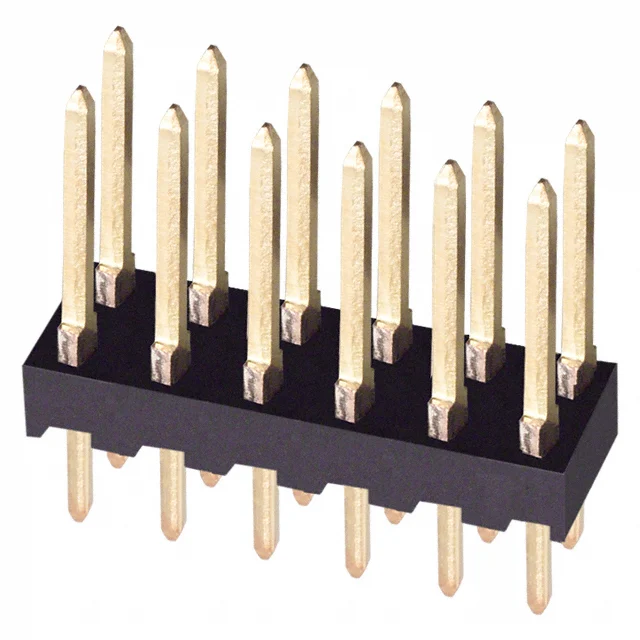

TYCO 1-103240-0 Connector Headers & Wire Housings 20Position HEADER GOLD 30u Double Row
Manufacturer: TE Connectivity
Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
RoHS: N
Product: Headers
Type: Breakaway
Number of Positions: 20 Position
Pitch: 2.54 mm (0.1 in)
Number of Rows: 2 Row
Row Spacing: 2.54 mm (0.1 in)
Termination Style: Solder Pin
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Gold
Mating Post Length: 5.84 mm (0.23 in)
Termination Post Length: 3.05 mm (0.12 in)
Series: AMPMODU MOD II
Tradename: AMPMODU
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 105 C
Packaging: Bulk
Brand: TE Connectivity
Compliance: UL; CSA
Contact Material: Phosphor Bronze
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: MX
Current Rating: 3 A
Flammability Rating: UL 94 V-0
Housing Material: Thermoplastic
Insulation Resistance: 5 GOhms
Product Type: Headers & Wire Housings
Subcategory: Headers & Wire Housings
Enhance your electronic connections with our AMPMODU Headers, meticulously crafted for superior performance. These headers feature a durable thermoplastic housing in sleek black, meeting stringent industry standards with CSA LR7189 and UL E28476 certifications. With two rows of 20 gold-plated pins, these headers ensure secure and efficient Through Hole – Solder termination on your printed circuit boards. Operating flawlessly in a wide temperature range from -65 to 105 °C, they guarantee reliability in industrial settings. The high-quality phosphor bronze contacts, plated with nickel and tin-lead, offer excellent conductivity and durability. Ideal for vertical PCB mounting, these headers are a must-have for any electronic project requiring precision and efficiency. Rest assured of their quality and compliance, with UL 94V-0 flammability rating and ECCN EAR99 classification. Elevate your PCB connections with our AMPMODU Headers, the perfect choice for demanding electronic applications.
