Description

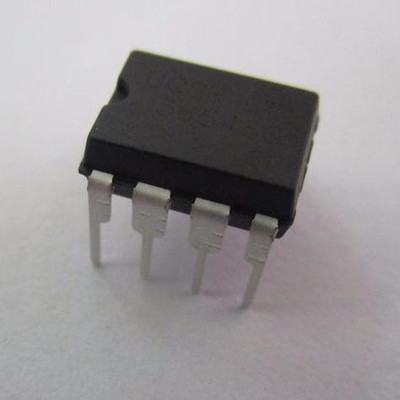

The UTC UCS1652S is an integrated PWM controller and Power
MOSFET specifically designed for switching operation with minimal
external components. The UTC UCS1652S is designed to provide
several special enhancements to satisfy the needs, for example,
Power-Saving mode for low standby power, Frequency Hopping ,
Constant Output Power Limiting , Slope Compensation ,Over Current
Protection (OCP), Over Voltage Protection (OVP), Over Load
Protection (OLP), Under Voltage Lock Out (UVLO), Over Temperature
Protection (OTP), etc. IC will be shutdown or can auto-restartin
situations.
FEATURES
Internal PowerMOSFET (650V)
Gate Output Maximum Voltage Clamp(16V)
Programming Gate Driver Capability
Over temperature protection
Frequency hopping for Improved EMI Performance.
Overload protection
Lower than 0.3W Standby Power Design
Over voltage protection
Linearly decreasing frequency to 26KHz during light load
Leading edge blanking
Internal Soft start
Cycle-by-Cycle current limiting
Internal Slope Compensation
Under Voltage Lock Out
Constant Power Limiting for universal AC input Range
Manufacturer:Unisonic
Datasheet:UCS1652S DIP_DS.pdf
