Description

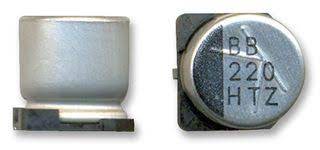

UCV1V221MCL1GS Nichicon Aluminum Electrolytic Capacitors – SMD 220uF 35V 20% AEC-Q200 (6.3 X 7.7mm) Cylindrical Radial 600mA 2000 hr 105C T/R RoHS
Specifications
Manufacturer: Nichicon
Product Category: Aluminum Electrolytic Capacitors – SMD
Packaging: Cut Tape
Packaging: Reel
Series: UCV
Product: Low Impedance Electrolytic Capacitors
Capacitance: 220 uF
Voltage Rating DC: 35 VDC
Tolerance: 20 %
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 105 C
Diameter: 6.3 mm
Length: 7.7 mm
Ripple Current: 600 mA
Qualification: AEC-Q200
Termination Style: SMD/SMT
Type: Chip Type, Low Impedance
Brand: Nichicon
Product Type: Electrolytic Capacitors
Factory Pack Quantity: 900
Subcategory: Capacitors
Unit Weight: 0.029041 oz
Manufacturer: Nichicon
MFG Part #: UCV1V221MCL1GS
